Leading Edge Safety BRAP-0000-23-ASM BRAP - Ballasted Roof Anchor Point
Leading Edge Safety BRAP-0000-23-ASM BRAP - Ballasted Roof Anchor Point
🚚 Ships from $9.99 · FREE over $1,000 ·
| Order subtotal | Shipping |
|---|---|
| Under $50 | $9.99 |
| $50 – $249.99 | $14.99 |
| $250 – $499.99 | $19.99 |
| $500 – $999.99 | $29.99 |
| $1,000+ | FREE |
One flat rate per order, based on the subtotal of everything in your cart. This is an estimate; the final cost is shown at checkout.
Sold individually
SO YOU COME HOME.
Good for
- Roof anchor point
Typically bought by: Fall protection; Rooftop safety
Not for
- Chemical handling, unless the manufacturer publishes chemical resistance
- Impact hazards, unless an ANSI/ISEA 138 impact rating is published
- Any hazard or rating not published for this exact model
SO YOU COME HOME.

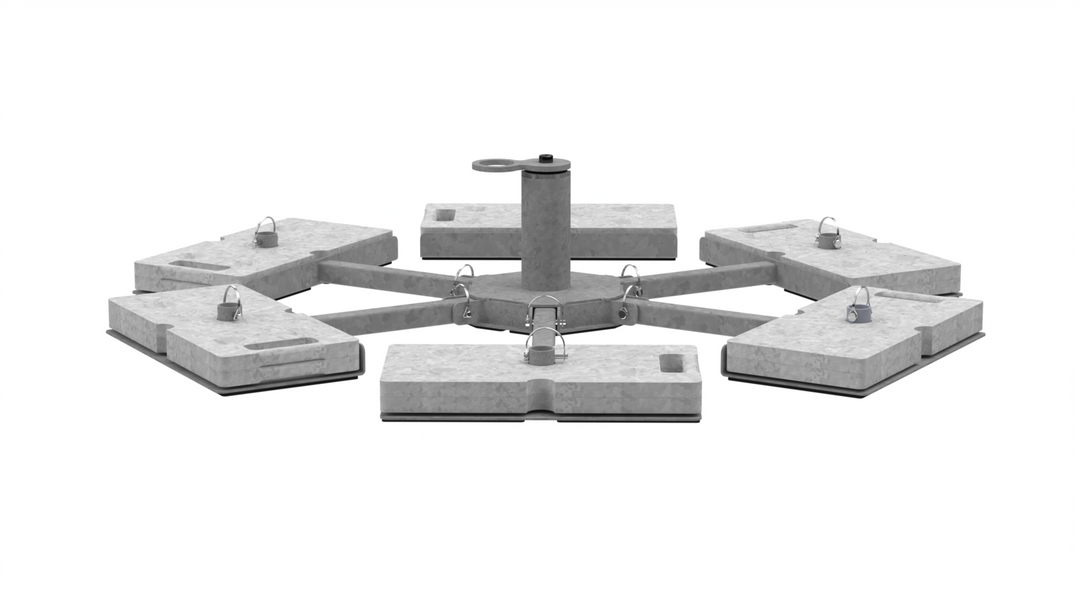

A roof tie-off point without roof penetrations.
The Ballasted Roof Anchor Point (BRAP) is a modular anchorage for one worker in fall arrest on approved flat or low-slope roof configurations. Its complete weighted base provides a connection point without drilling into the roof.
1 user | 12 ballast weights | 730 lb assembled
Why consider BRAP?
- Non-penetrating setup: evaluate a roof anchorage without mechanical fasteners through the roof membrane.
- Modular components: separate the legs and weights for transport, storage and repositioning.
- A designated connection point: the central anchor loop connects one worker's compatible fall arrest equipment to the complete BRAP assembly.
How BRAP works
Six legs lock into the center assembly. Each leg carries two specified 50 lb weights, giving 600 lb of ballast. Locked retaining pins secure the legs and weight posts. Neoprene pads form the roof-contact interface at the center and outrigger locations.
The worker wears a full-body harness and connects a compatible self-retracting lifeline (SRL) or lanyard to the designated loop. Fall arrest equipment stops a fall after it begins, so sufficient clearance and a rescue plan are essential. BRAP, the connecting equipment, roof and work area must be reviewed together as a complete fall protection system.
BRAP and OSHA compliance
BRAP incorporates components with a minimum breaking strength of 5,000 lb and is designed to provide anchorage for one worker's complete personal fall arrest system.
BRAP is designed for use under 29 CFR 1926.502(d)(15)(i) and (ii). This provision requires the complete system to maintain a safety factor of at least two, with its design, installation and use supervised by a qualified person.
The complete BRAP assembly, ballast, roof interface and selected fall arrest equipment must be evaluated together. Proper use requires the full specified configuration, an approved roof application, compatible harness and connecting equipment, correct placement, sufficient fall clearance, inspection and a prompt rescue plan.
BRAP downloads
Download the general customer brochure to learn why BRAP is used, how it works and how to plan its placement. Use the factory instructions and drawing for assembly details.
Customer brochure - Rev C (PDF, 6 pages) Factory assembly instructions - April 2026 (PDF, 9 pages) Factory dimension drawing - April 2026 (PDF, 1 page)Plan the roof and work area
- Roof edge: maintain at least 10 ft from the leading edge to the anchor center.
- Wall clearance: maintain at least 30 in from a wall to the center. A parapet or wall at an edge does not reduce the 10 ft edge setback.
- Fall clearance: the edge setback is not a fall-clearance calculation. Review anchor height, edge exposure, swing fall, obstructions and rescue.
A qualified person must review roof construction, membrane attachment, insulation or cover board, deck, slope, surface condition and capacity for the application. Select connecting equipment suitable for the low anchorage and any edge exposure.
Assembly and inspection overview
- Review the application. Confirm the roof, location, equipment, work zone, clearance and rescue plan.
- Fit the six legs. Install the specified factory leg pins and lock their wire retainers.
- Install all twelve weights. Seat two 50 lb weights on each leg. Install all six weight-post pins and lock every retainer.
- Inspect, then connect. Check the complete assembly, pads, roof contact, labels and equipment before one worker connects to the designated loop.
Do not move BRAP while a worker is attached. Reinspect after relocation or reassembly. Inspect before each use and at least annually. Remove from service after a fall or damage and contact Leading Edge Safety.
This overview supports product selection. Follow the factory instructions, equipment instructions and approved application requirements for installation and use.
Product facts
| Model / SKU | BRAP-0000-23-ASM |
|---|---|
| Application | One user in fall arrest on approved roof configurations |
| Complete assembly | 730 lb, per April 2026 factory instructions |
| Ballast | 12 × 50 lb weights; 600 lb total |
| Legs / retaining pins | 6 legs; 12 locking pins (6 leg pins and 6 weight-post pins) |
| Construction | Steel assembly with a hot-dip galvanized finish |
| Roof-contact interface | Specified neoprene center and outrigger pads |
| User weight | Label lists 340 lb maximum; confirm total equipped weight with LES |

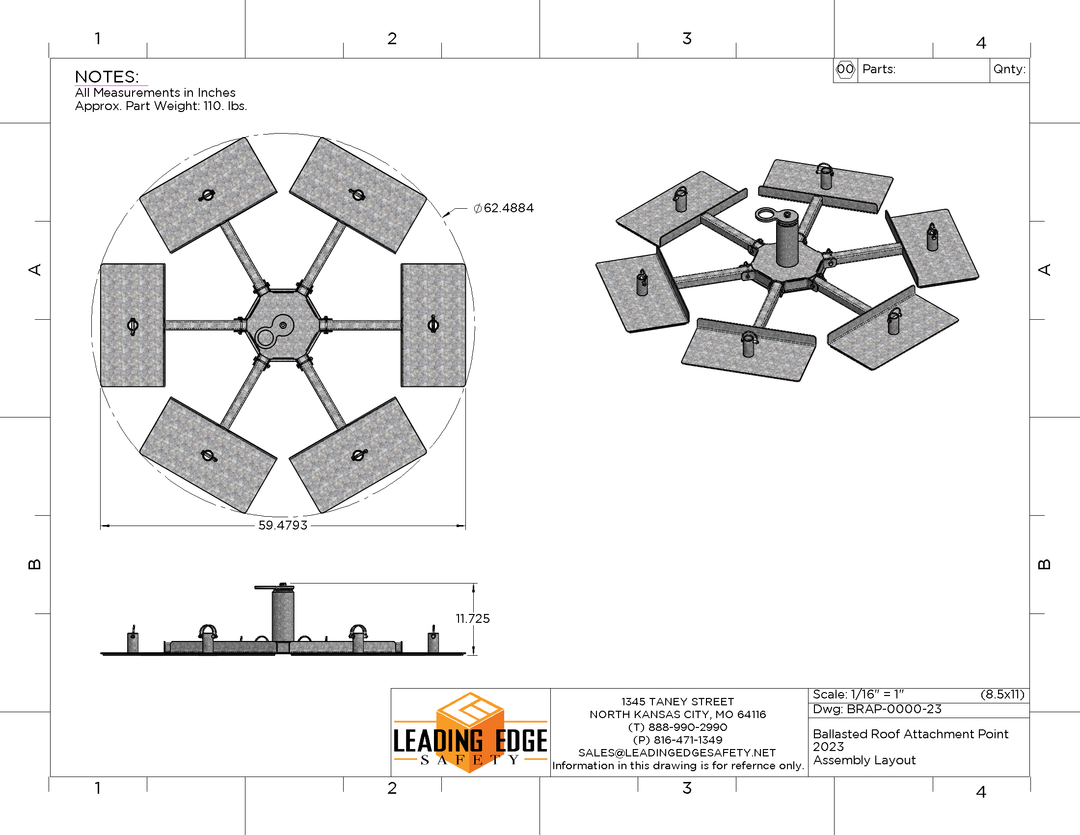

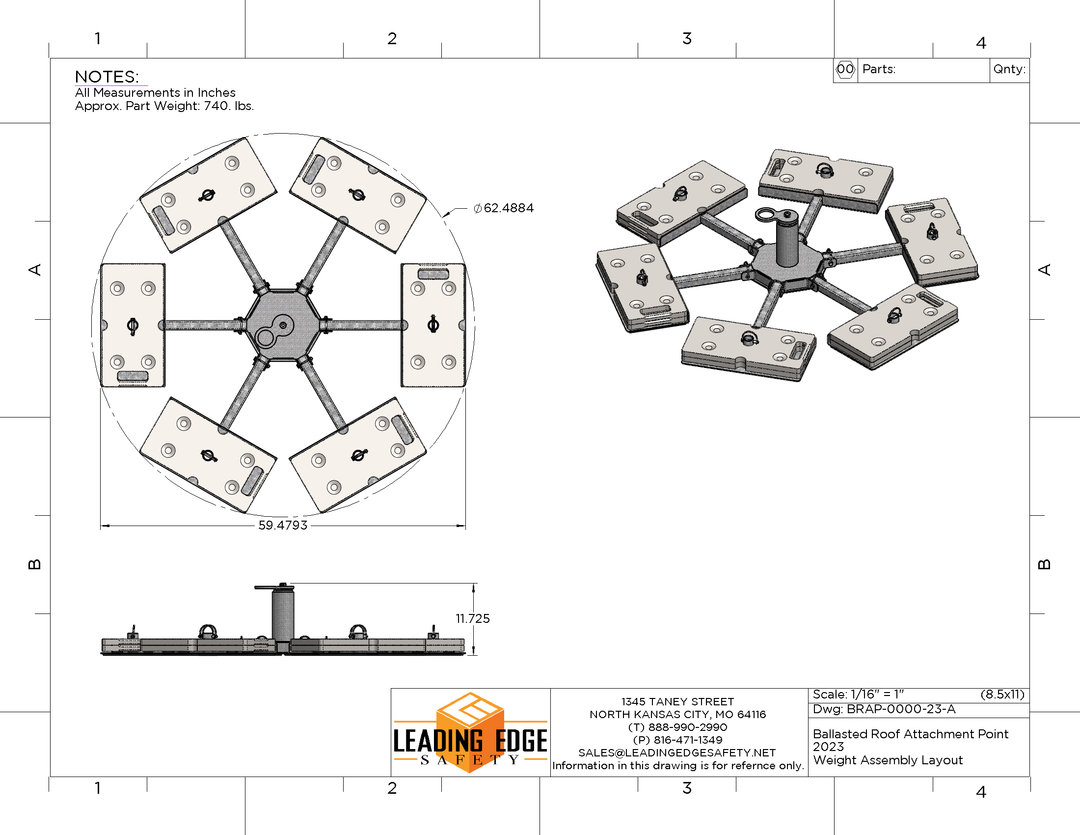

| Dimensions | See the factory dimension drawing above |
Manufacturer-listed references: OSHA 1910.140, OSHA 1926.502 and ANSI Z359.18 Type D. Confirm the approved application and supporting records with Leading Edge Safety.
Need help selecting BRAP?
Provide your project location, roof details and photos, scope of work, worker count, quantity and requested dates. Leading Edge Safety can support product selection, documentation and application review.
888-990-2990 | sales@leadingedgesafety.net
Select, inspect and use fall protection equipment only as described in the manufacturer's instructions and applicable OSHA and ANSI requirements, by trained users.
