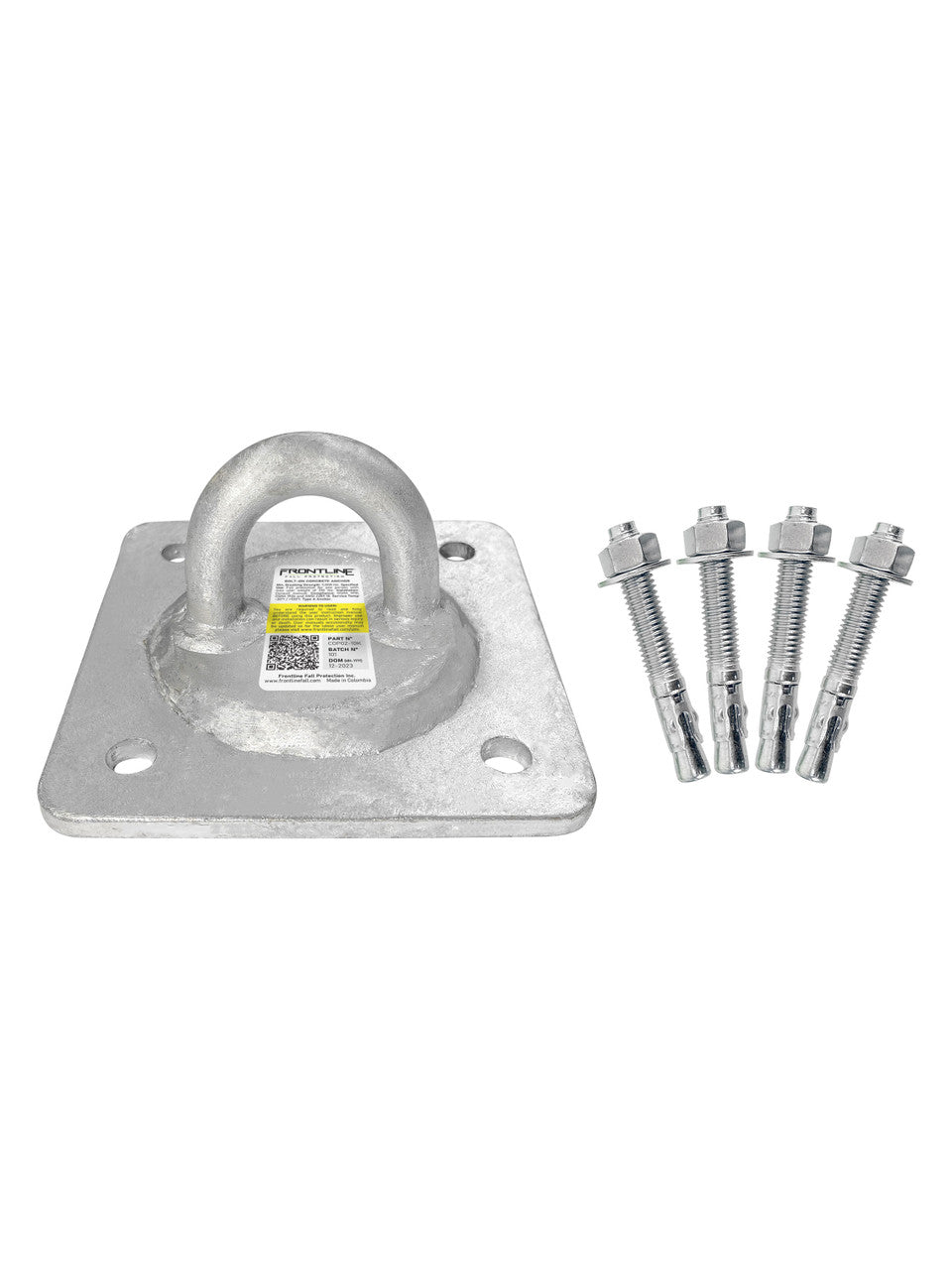

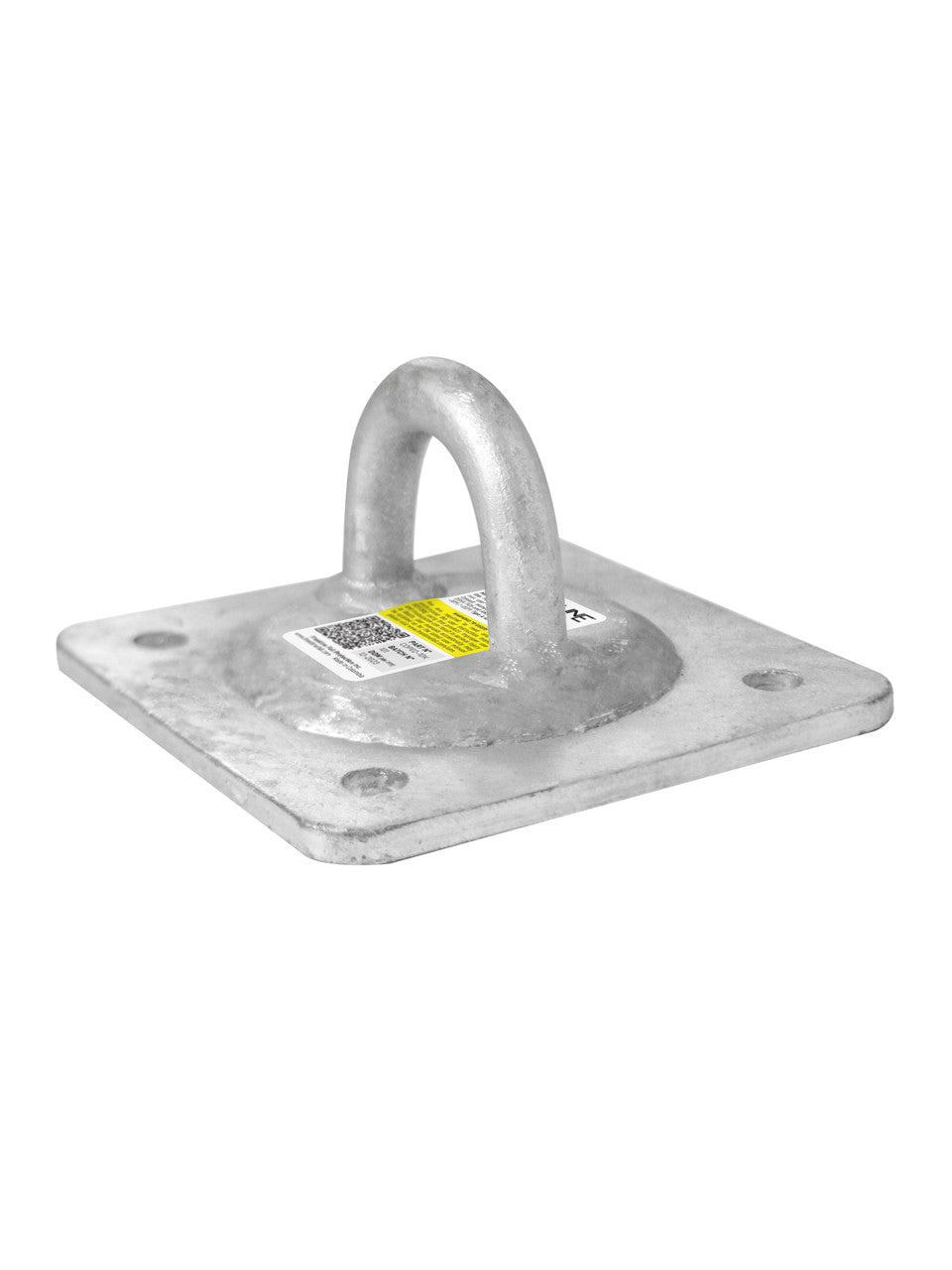

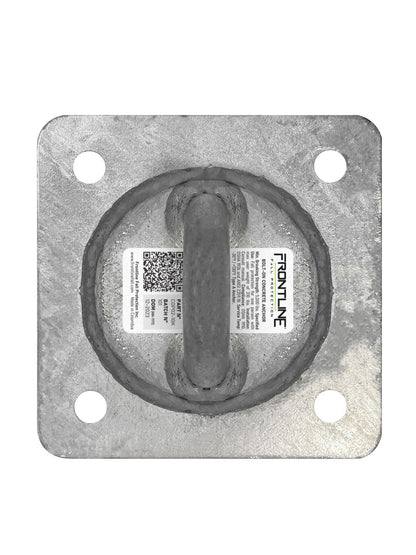

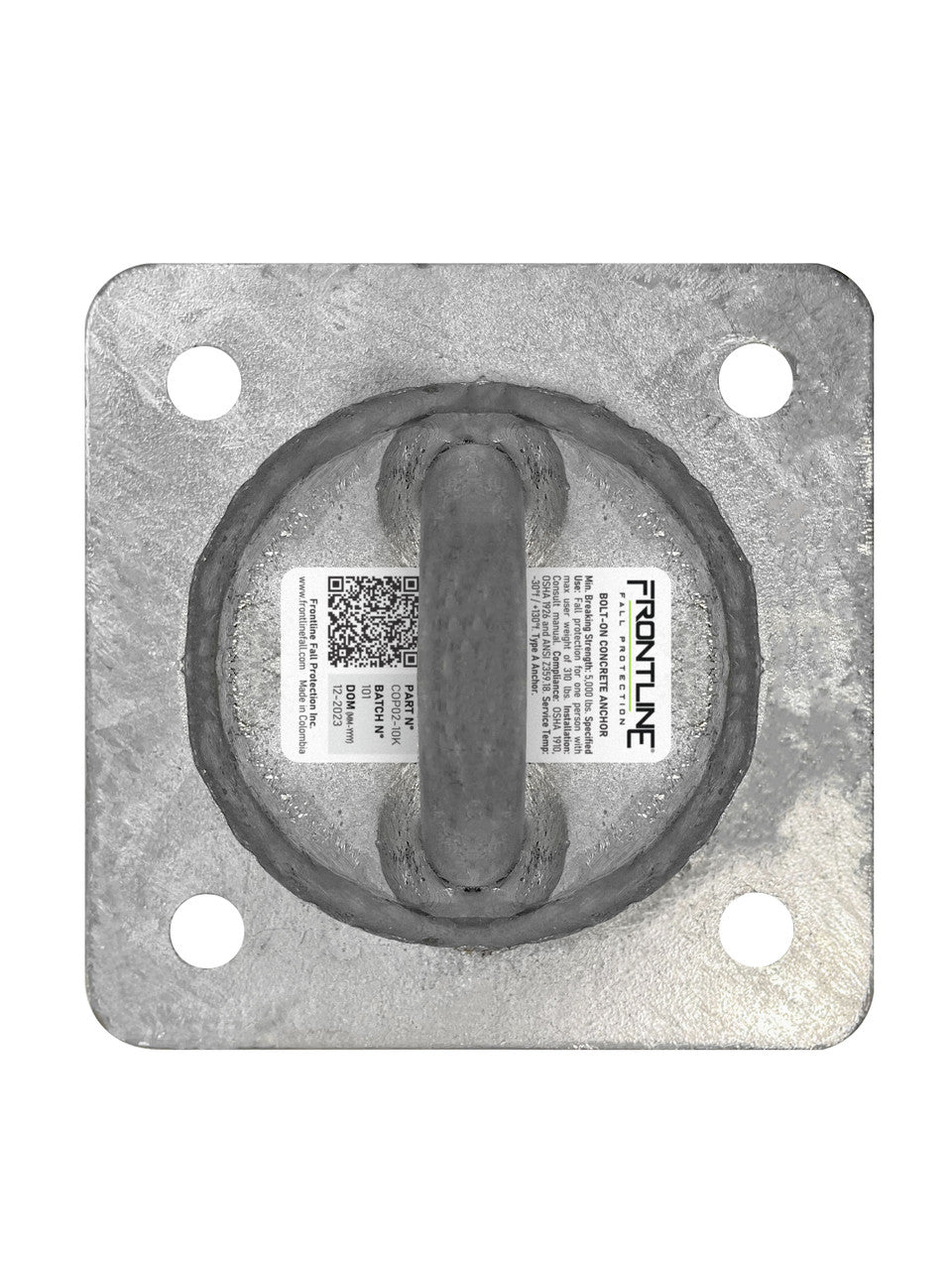

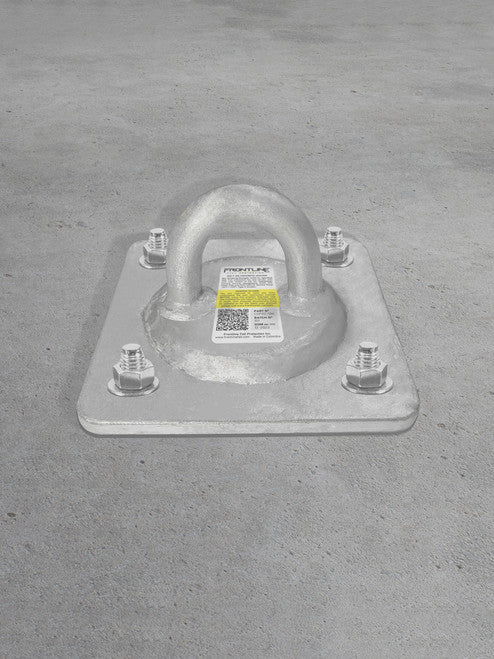

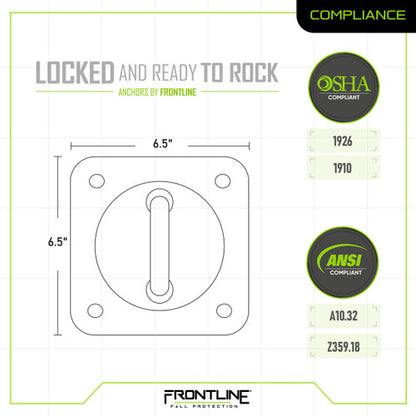

Frontline introduces the fall arrest bolt-on anchor plate, specifically designed for anchoring at concrete walls, ceilings, columns, or other concrete and steel structures. The anchor plate is easy, reusable and can be quickly installed and used in horizontal or vertical applications. It comes with four pre-drilled holes and all concrete anchor bolts are included and ready to use straight out of the bag.

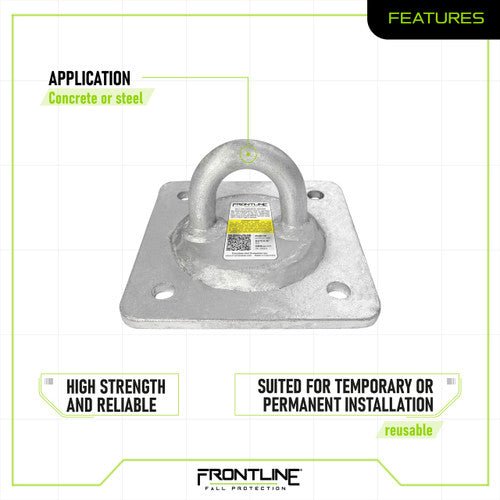

Features:

• The anchor is made up of ASTM rated steel, making it high strength and reliable
• Suited fall arrest applications for temporary or permanent installation in cured concrete or steel structures
• The anchor is easy and quick to install with minimum use of tools
• The anchor hot dipped galvanized for best corrosion protection and durability
• Anchor can be conveniently reused for either concrete or steel application, concrete wedge bolts do need to be replaced

Specs and Standards:

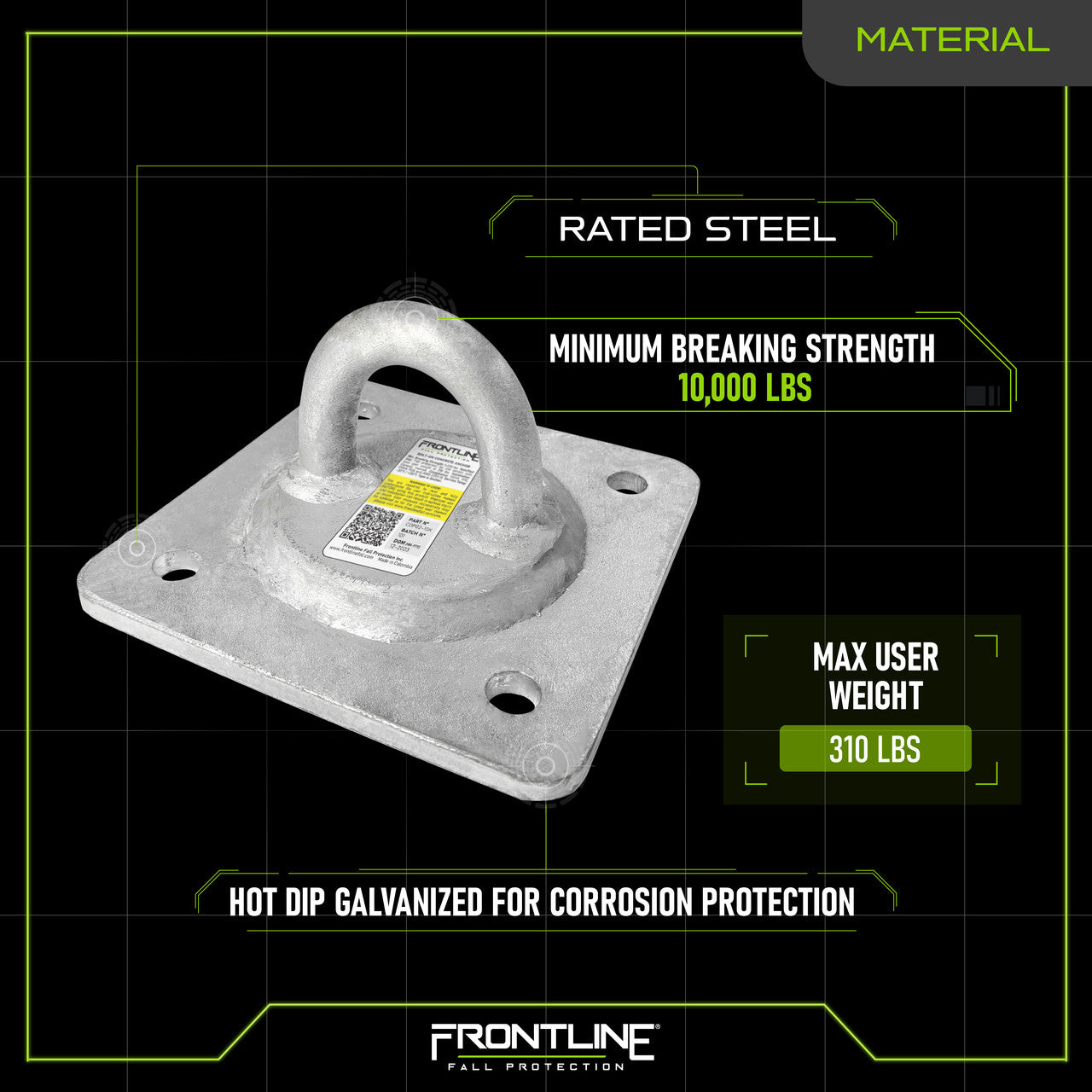

• Minimum Breaking Strength: 10,000 lbs
• Application: Concrete or Steel
• User Maximum Capacity: 130-310 lbs

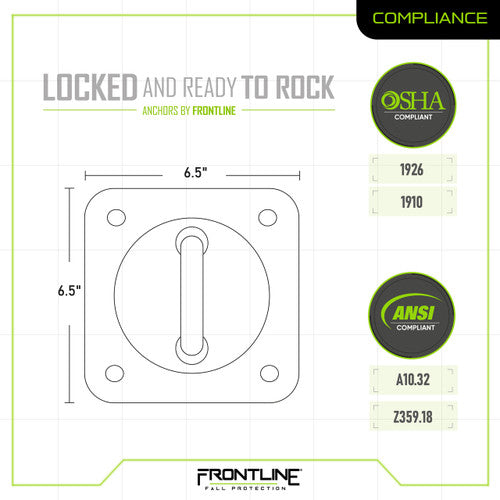

• Meets or exceeds ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910
