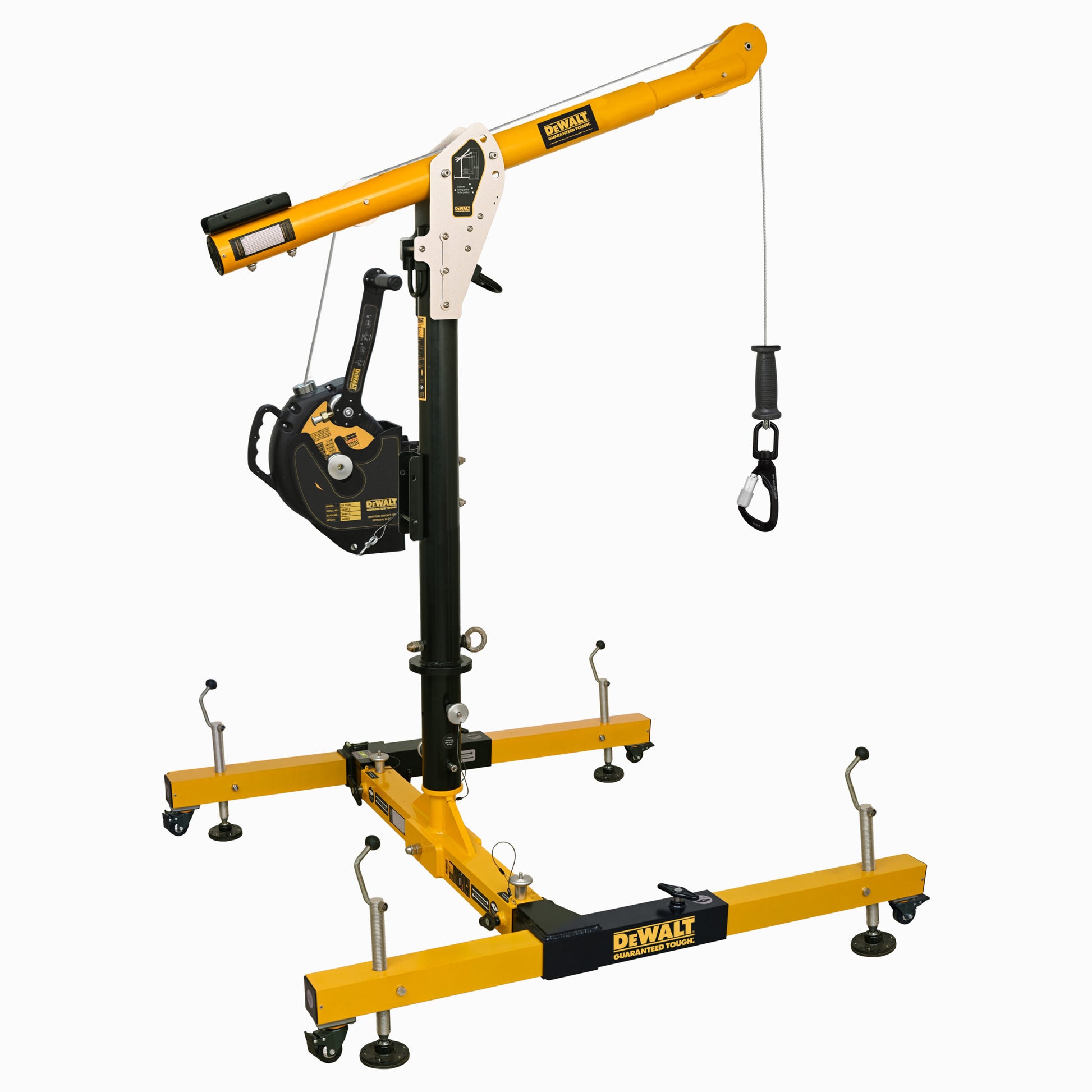

DEWALT 5 Piece Davit System - 54 in. Mast with 60 ft. Retrieval SRL

Ensure safety and efficiency in confined space entry and egress with the DEWALT 5 Piece Davit System. This portable fall protection and rescue system features a 54-inch (1.37 m) mast and a 60-foot (18.2 m) retrieval SRL, making it an essential tool for industrial safety.

Key Features & Benefits

• Portable & Easy Assembly: Breaks down into five lightweight, high-strength aluminum alloy components. No tools required for setup.
• 360° Rotation: Built-in swivel feature allows the davit column to rotate fully for optimal positioning.
• Versatile Anchorage: Multiple anchorage points designed for both fall protection and rescue applications.
• Durable Construction: Engineered for longevity in the toughest job site conditions.

Compliance & Standards

This system meets rigorous safety standards, including ANSI Z359.18-2017 Type A, ANSI Z359.4-2013, and OSHA 1926.502/1910.140. It provides a certified 5,000 lbs. (23kN) anchor point.

Technical Specifications

• Capacity: ANSI 310 lbs. (141 kg) / OSHA 620 lbs. (282 kg) for Rescue
• Working Width: 43 in. (1.1 m) to 59 in. (1.5 m)
• Max Height: 90 in. (2.3 m)
• Total Weight: 210.8 lbs. (95.6 kg)
• Material: High-Strength Aluminum Alloy
• Model: DXFP451819-054
