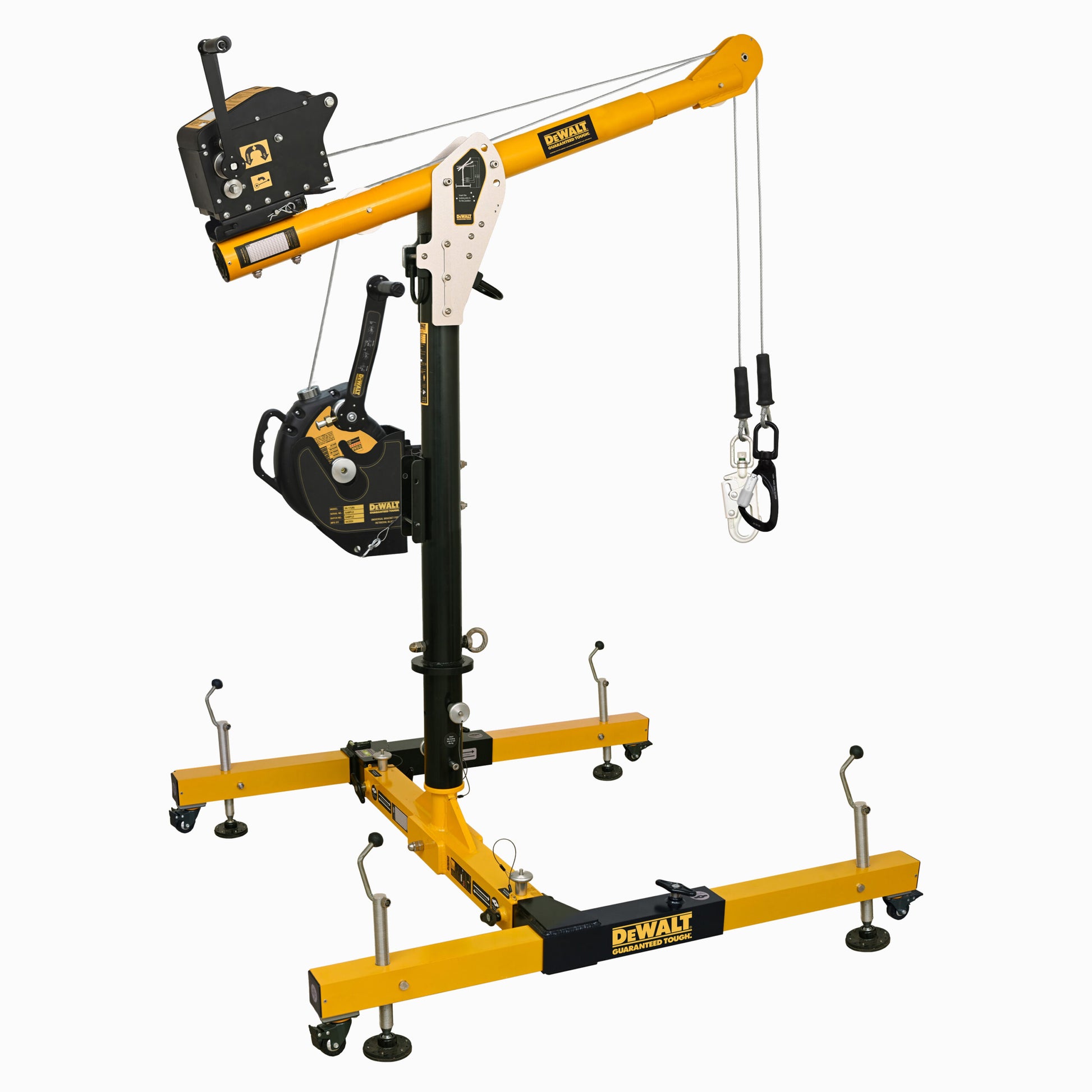

DEWALT 5 Piece Davit System - Confined Space Entry & Fall Protection

Ensure safety and efficiency in confined space entry and egress with the DEWALT 5 Piece Davit System. This professional-grade kit includes a 36-inch (0.91 m) mast, a 60 ft. (18.2 m) winch, and a 60 ft. (18.2 m) retrieval SRL, providing a complete, portable solution for fall protection and rescue applications.

Key Features & Benefits

• Durable Construction: Engineered from high-strength aluminum alloy for maximum longevity in demanding industrial environments.
• Portable & Flexible: The system disassembles into five lightweight components for easy transport and storage. Tool-free assembly allows for rapid deployment on-site.
• Versatile Operation: Features a built-in 360° swivel column for optimal positioning and multiple anchorage points for enhanced rescue capabilities.
• Certified Safety: Meets rigorous OSHA and ANSI standards, including a 5,000 lbs. (23kN) anchor point rating.

Technical Specifications

• Capacity: ANSI 310 lbs. (141 kg) / OSHA 620 lbs. (282 kg) for Rescue
• Working Width: 43 in. (1.1 m) to 59 in. (1.5 m)
• Max Height: 72 in. (1.8 m)
• Total Weight: 263.4 lbs. (119.4 kg)
• Material: High-Strength Aluminum Alloy
• UPC: 810091653470

Compliance Standards

Compliant with ANSI Z359.18-2017 Type A, ANSI Z359.4-2013, OSHA 1926.502, and OSHA 1910.140 regulations.
