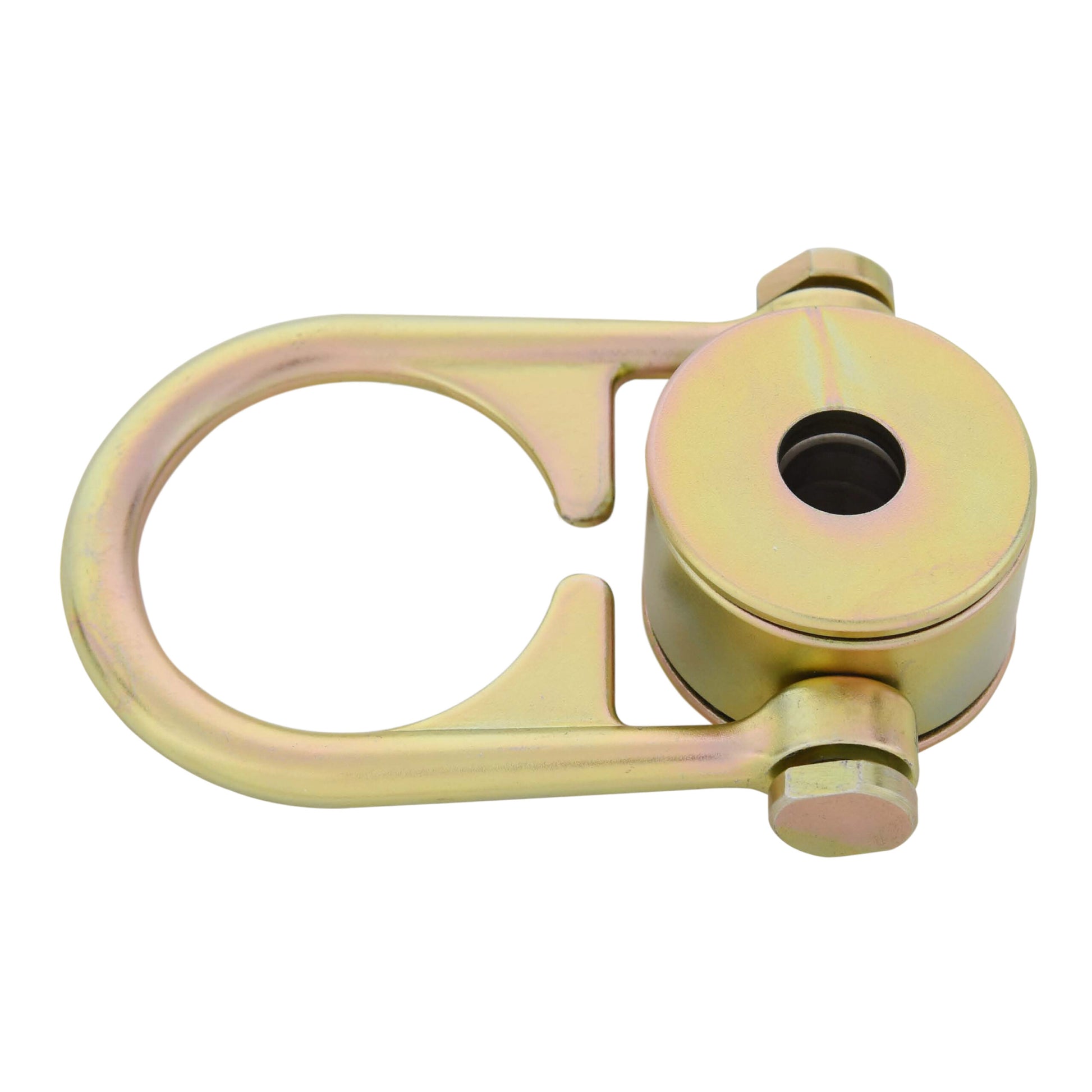

DEWALT DXFP843101 Single Point Anchor Swivel for Concrete

Ensure maximum safety and reliability on the job site with the DEWALT DXFP843101 Single Point Anchor Swivel. Designed specifically for concrete structures, this high-strength anchor point provides a secure, reusable, and corrosion-resistant solution for fall protection and industrial applications.

Key Features & Benefits

• Superior Durability: Constructed from high-alloy steel with galvanized zinc and silver/yellow passivation for exceptional rust and corrosion resistance.
• High Strength: Meets rigorous OSHA and ANSI Z359.18-2017 standards, offering a 10,000 lbs. (45kN) anchor point capacity.
• Versatile Installation: Compatible with 5/8 in. concrete fasteners; ideal for concrete blocks with a minimum thickness of 5 in.
• Reliable Performance: Engineered for post-construction concrete applications, ensuring long-term stability.

Technical Specifications

• Model: DXFP843101
• Material: High-strength yellow galvanized alloy steel
• Dimensions: 4.45 in. (L) x 3 in. (W)
• Weight: 1.72 lbs. (0.78 kg)
• Min. Breaking Strength: 5,000 lbs. (2267 kg)
• Compliance: ANSI Z359.18-2017 Type A; OSHA 1926.502 and 1910.140

Note: For optimal performance, use with DEWALT POWER-BOLT®+ Heavy Duty Sleeve Anchor 6945SD-PWR or equivalent. For steel applications, ensure the use of a bolt no shorter than 4 in. with a grade 5-8 rating, locking nut, and washer.
