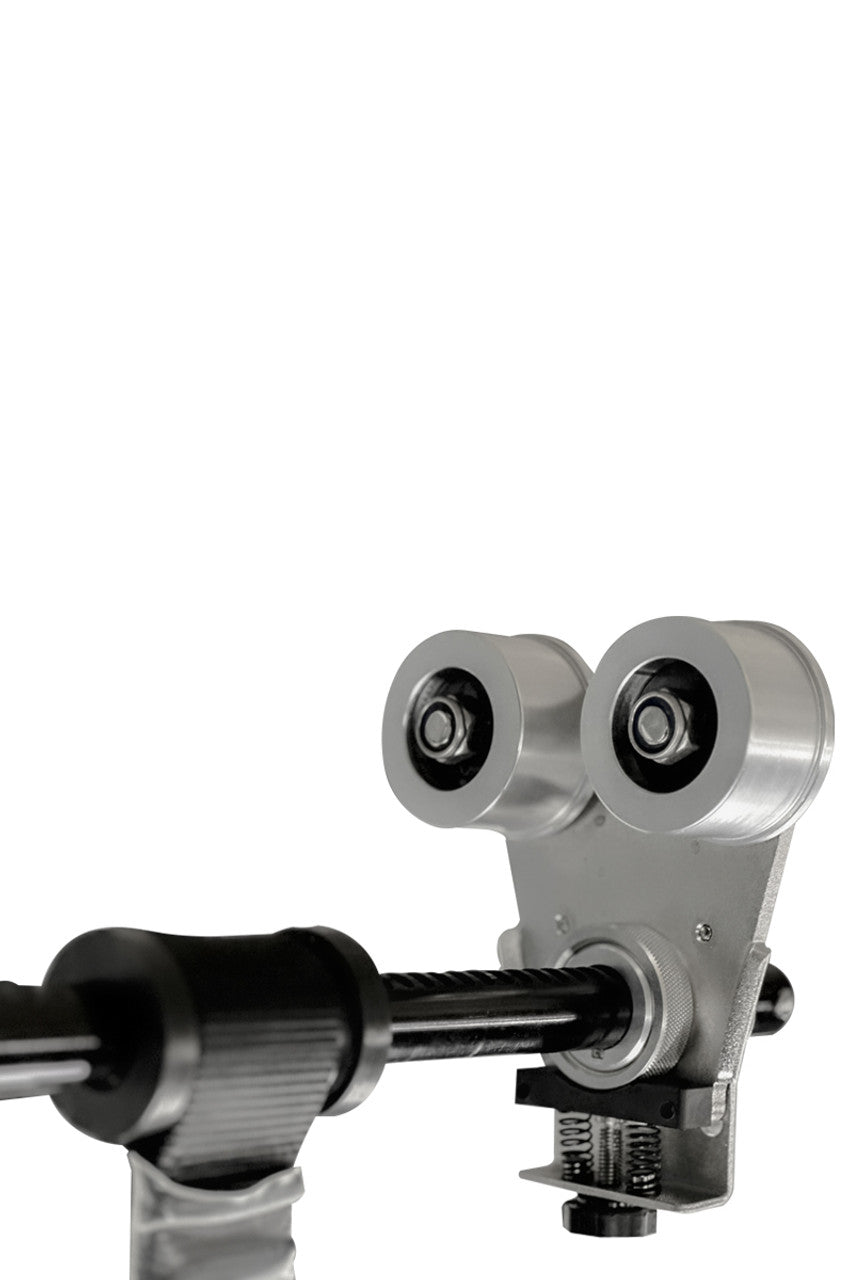

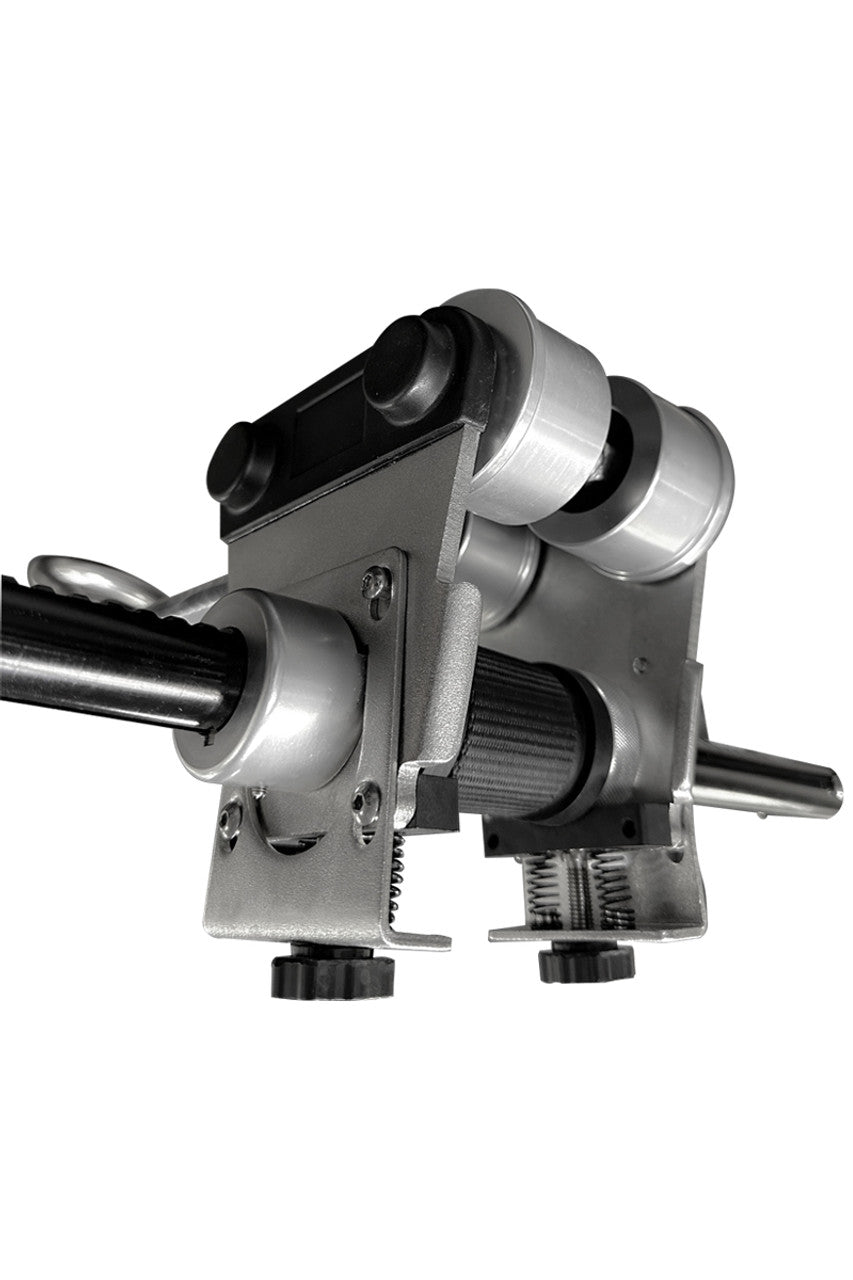

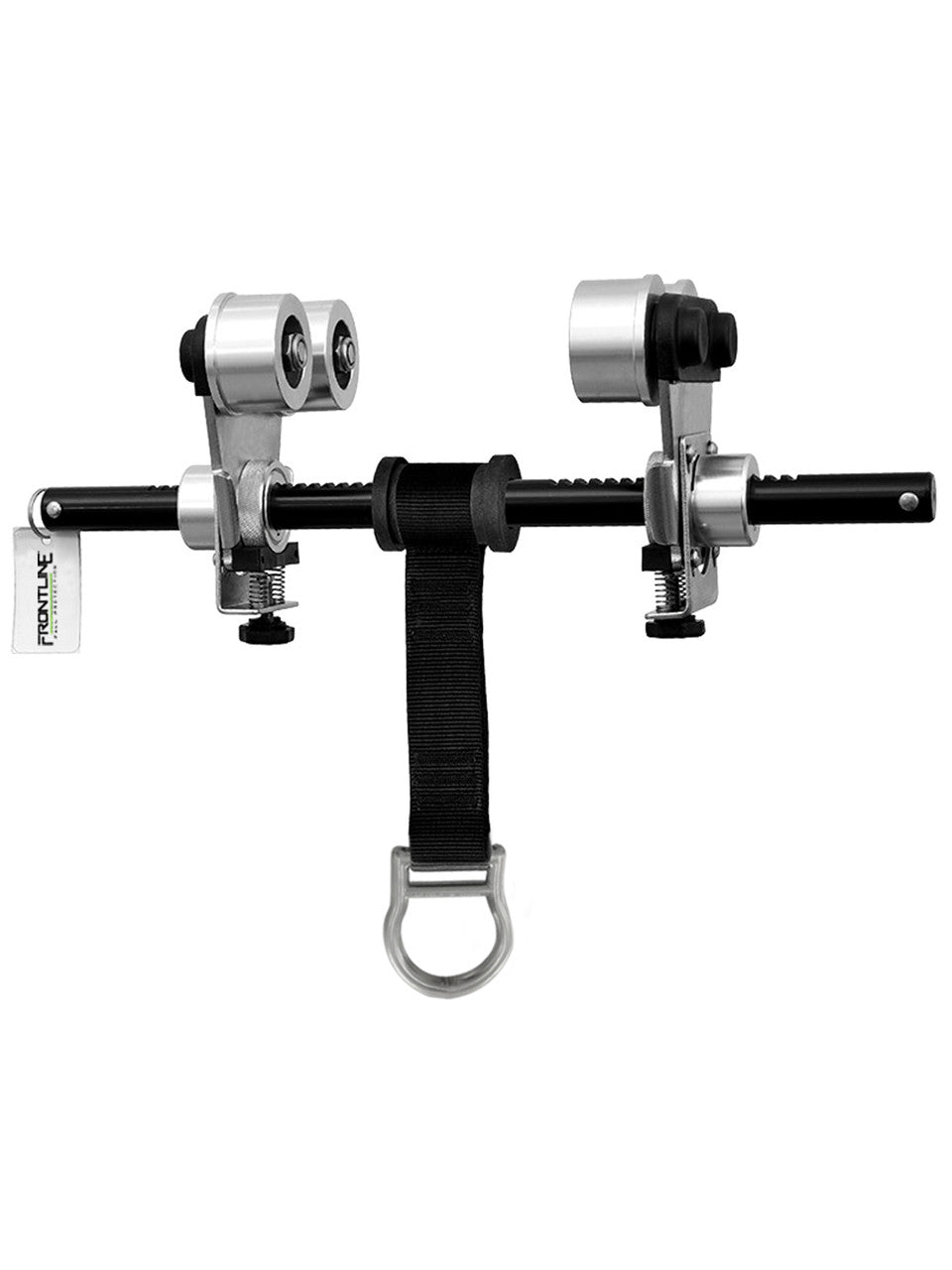

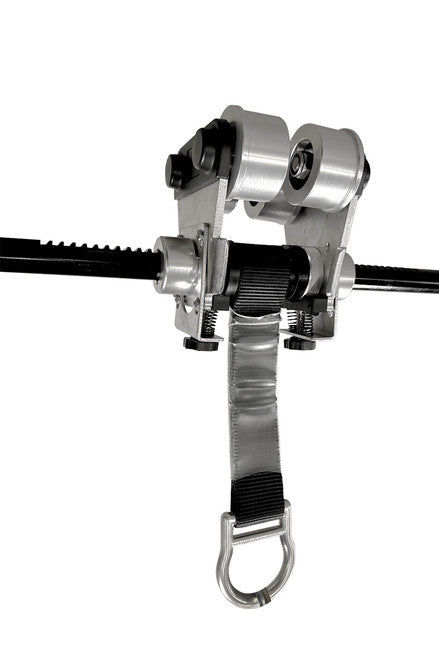

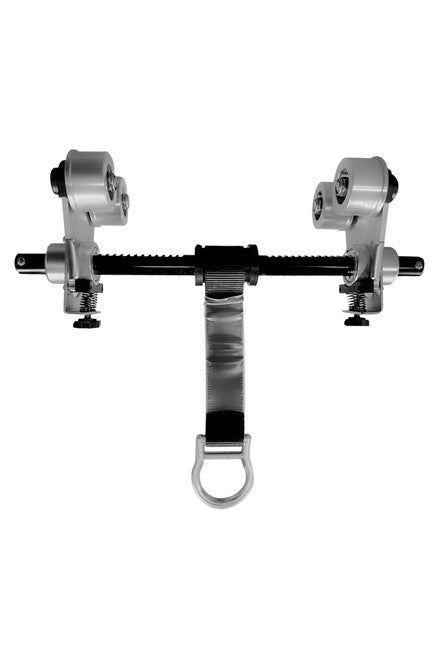

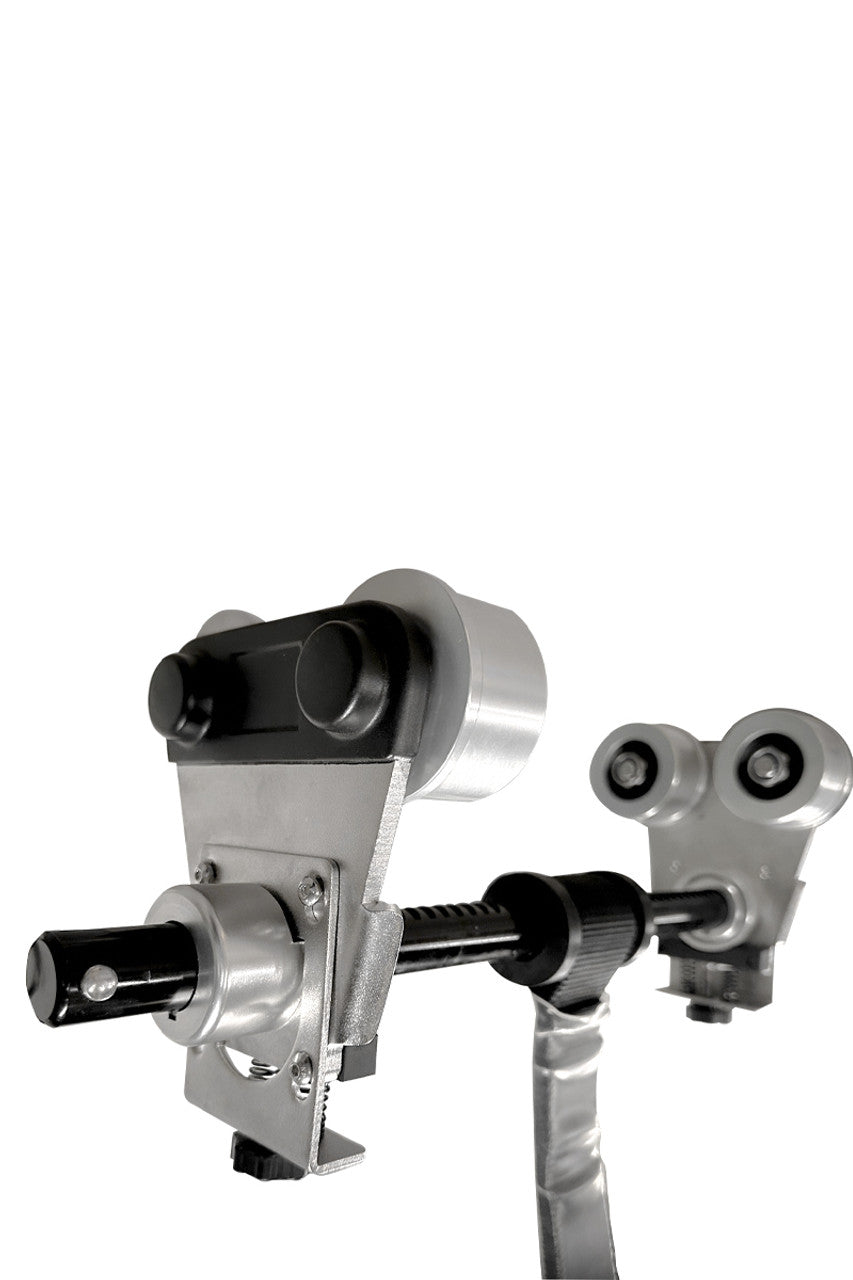

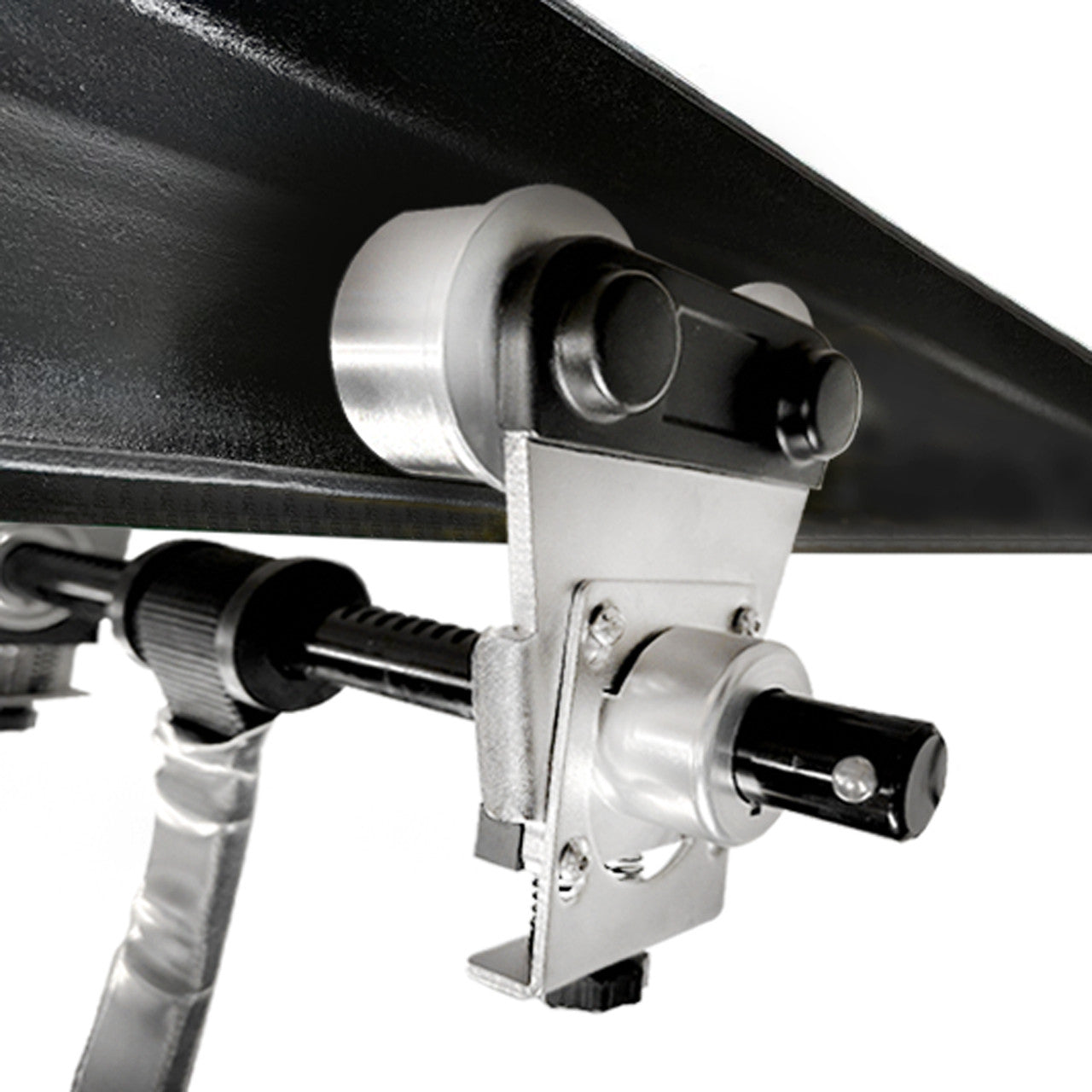

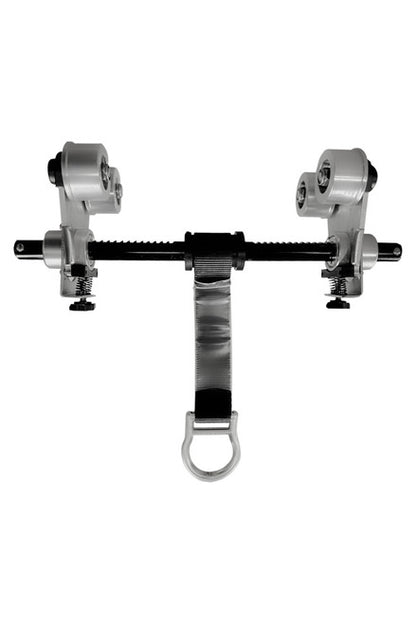

Frontline ST10HTK Aluminum Beam Trolley Anchor for 3" - 10" Wide I-Beams

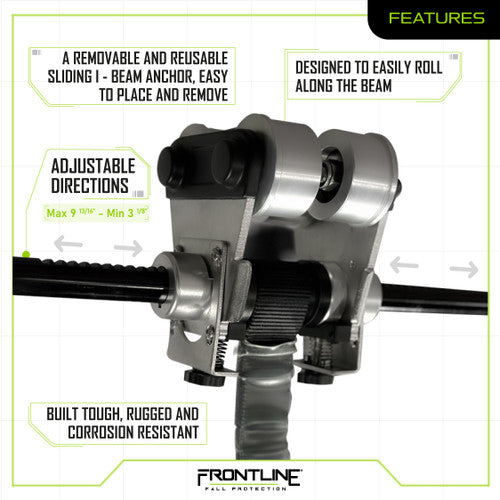

The beam trolley anchor is one of our best options when it comes to choosing a trailing beam anchoring device because of its unique rugged but fast moving aluminum rollers feature. Increased user trailing mobility, means increased productivity while maintaining the highest level of safety! It's a removable and reusable rolling I-beam anchor, easy to place and remove.

D-ring is centered on the anchorage connector for ease of sliding on beam flanges and can be conveniently adjusted from both sides. Suitable for single user connection, the I-beam roller can be used with either a self retracting lifeline or a shock absorbing lanyard. The beam anchor can fit I-beams from 3" wide and adjust up to 10" wide I-beams.

Features:

• Rollers feature a smooth, productive and safe movement thru the I-beam following the user for improved productivity
• Built tough, rugged and corrosion resistant for long lasting job after job
• Swiveling D-Ring rotates 360° and pivots 180° side-to-side conveniently helping avoid side loading or accidental disengagement
• Anchor is made up of aluminum components making it lightweight and easy to carry around the work area
• Beam Flange Width Range: 3″-10″
• Beam Flange Thickness: Up to 1″

Components:

• Aluminum Cross Bar
• Polyester Webbing
• Zinc Plated Swivel
• Stainless Steel Spring, Hardware
• Aluminum Rollers

Specs and Standards:

• Static Tensile Strength: 5,000-lbf/22kN
• Max User Capacity: 310 lbs
• Product Weight: 9.2 lbs

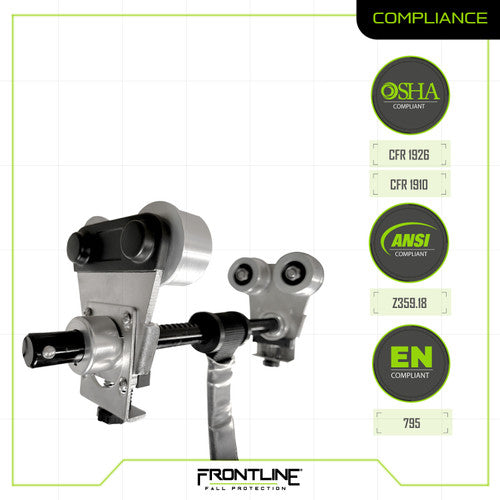

• Meets or exceeds ANSI Z359.18, OSHA 1910.140, OSHA 1926.502, EN 795:2012
