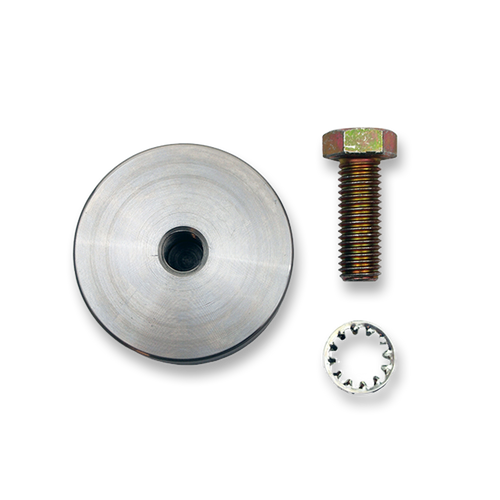

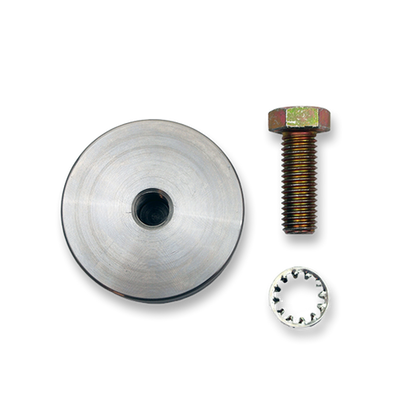

The Weld Puck Kit is a weld on mount for Frontline’s 10K Swivel Anchors. Available in stainless steel and mild carbon steel. A Grade 8 5/8″-11 bolt and internal lock washer are included in the kit.

Welding procedure must be approved by an engineer or other qualified person to be compatible with any and all structural and operational characteristics of the selected installation location.

Features:

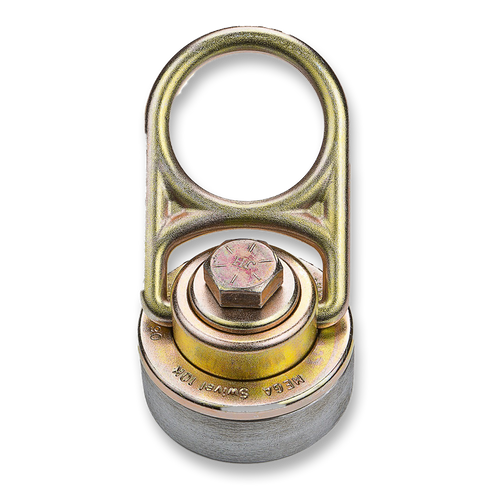

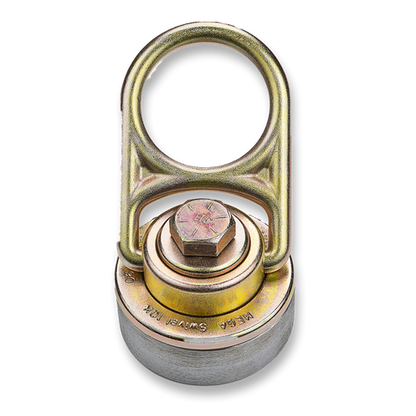

• Anchor Rotates 360° and pivots 180° side-to-side
• Permanent and Temporary installations supported for Steel
• Anchor is rated up to 10,000 lbs Tensile Strength

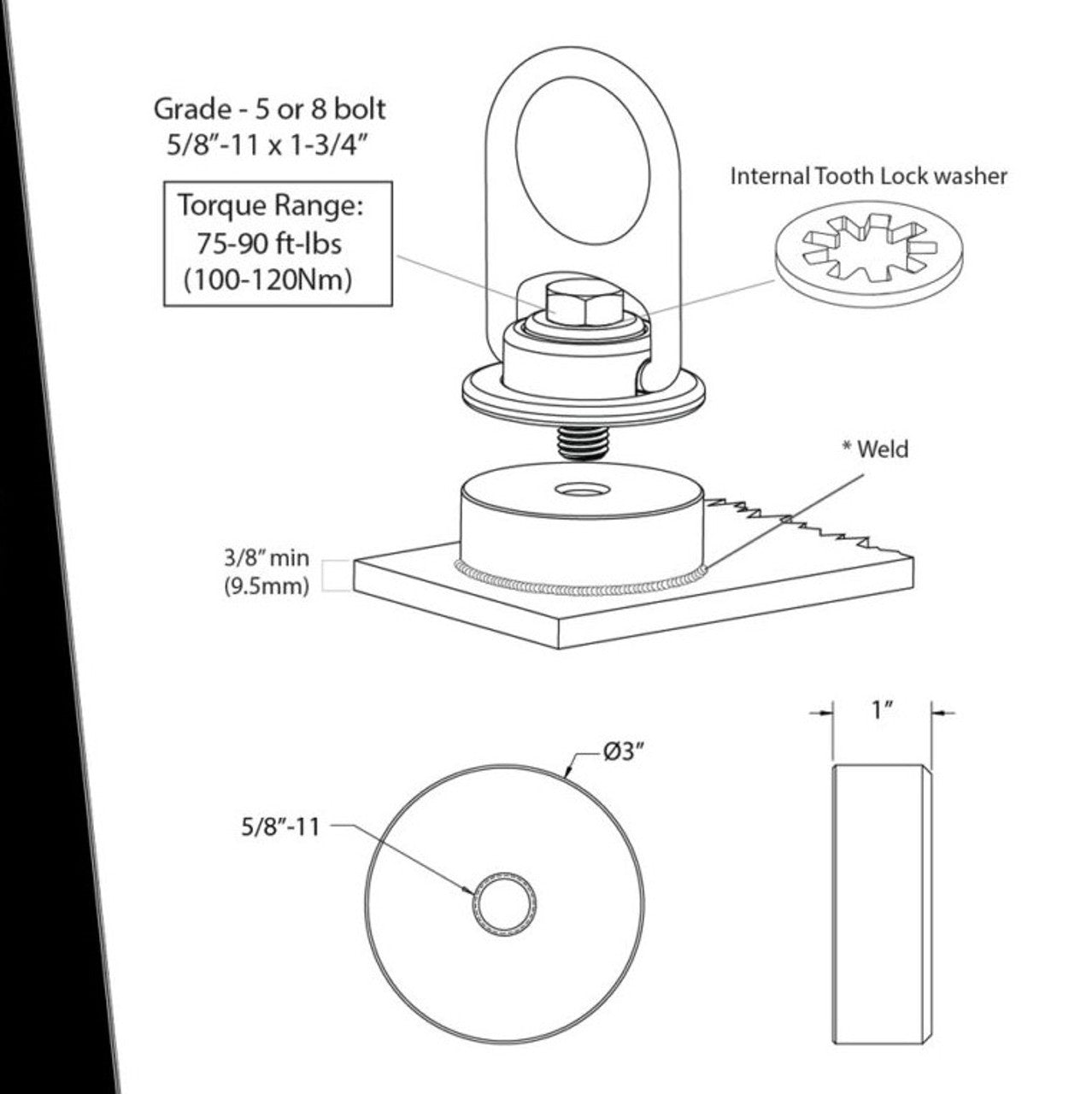

• 3" x 1" Puck with 5/8" threaded hole
• Includes 5/8" x 4" Plated Grade 8 Bolt and Nut

Materials:

• Connector D-Ring Zinc Plated Alloy Steel; 5,000 lbs Min
• Weld-on Puck Unplated Mild Steel
• Fasteners Zinc Plated Steel, Grade 8

Performance Standards:

• Tensile Strength 5,000 lbs Min.
• ANSI User Capacity 130 to 310 lbs Max.
• OSHA User Capacity 130 to 425 lbs Max.
