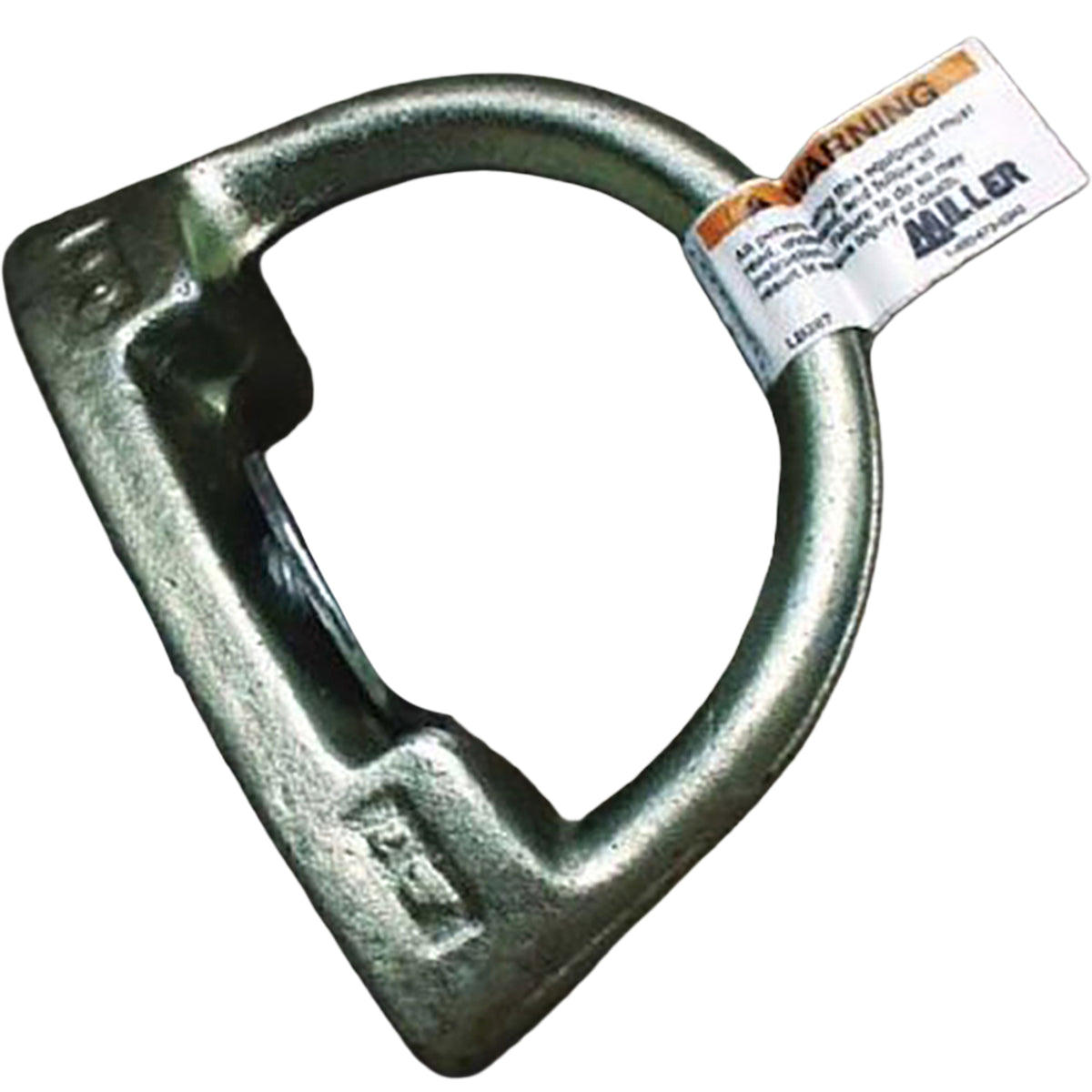

Miller’s permanent D-bolt anchor is a robust anchorage connector designed to provide a secure attachment point for fall protection systems. It’s constructed from drop-forged alloy steel, ensuring high durability and resistance to wear and tear. Engineered for permanent installation and suitable for use in concrete applications, it supports a maximum working load of 400 lbs and meets stringent safety ANSI and OSHA standards. Ideal for environments where a strong, permanent connection is required for safety.

Key Features

• Made from drop-forged alloy steel for enhanced durability, to withstand harsh conditions
• Single D-ring design configuration for secure attachment to a single anchorage point
• Permanent installation, suitable for concrete applications
• Designed for up to 4-inch (102 mm) working thickness
• Tensile strength rated for up to 5,000 lbs.
• Supports up to 400 lbs, accommodating a wide range of workers and equipment
• Meets ANSI A10.32, ANSI Z359.1-2007, OSHA 1910.66, and OSHA 1926.502(d) standards

Spec sheet: https://us.pipglobal.com/archive/spec-sheets/dynamic/417-Specification-Sheet-US-EN.pdf
