Roof Hatch Rail System For 30" X 30-54" Hatches PRS-RH-30X30-54-ASM

Roof Hatch Rail System For 30" X 30-54" Hatches PRS-RH-30X30-54-ASM

$2,154.00 USD
$2,154.00 USD
Sale Sold out
Shipping calculated at checkout.

Enhance Safety with the PRS-RH-30X30-54-ASM Roof Hatch Rail System

Ensure secure access to your roof hatches with our comprehensive Rail System, designed for 30" x 30-54" openings. This system includes everything you need for a robust and safe solution.

Key Components:

  • Box "A30": Roof Hatch Uprights and Hardware
    • 2 - Vertical Posts (30" wide)
    • 2 - Rear Horizontal Rails (adjustable 43"-70")
    • 4 - Support Gussets
    • 2 - RH GrabSafe (6" wide)
  • Box "B54": Roof Hatch Walkout with Adjustable Rails
    • 2 - Walk-out side rails
    • 4 - Adjustable Rails (36"-54")
  • Box "C": Roof Hatch Gate
    • 1 - Gate Tube
    • 1 - Gate Tube Mount
    • 1 - Hinge Mount

Important Note: For thermally broken hatches, specialized mounting brackets are required. Please specify this requirement at the time of purchase.

Product Specifications:

General Specifications
For Hatch Sizes - 30"x 30-54" Hatch
Length - 81.5 in
Width - 49 in
Height - 45 in
Weight - 174 lb

Compliant With
OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, USACE EM 385-1-1 (21.E.01 a-c)

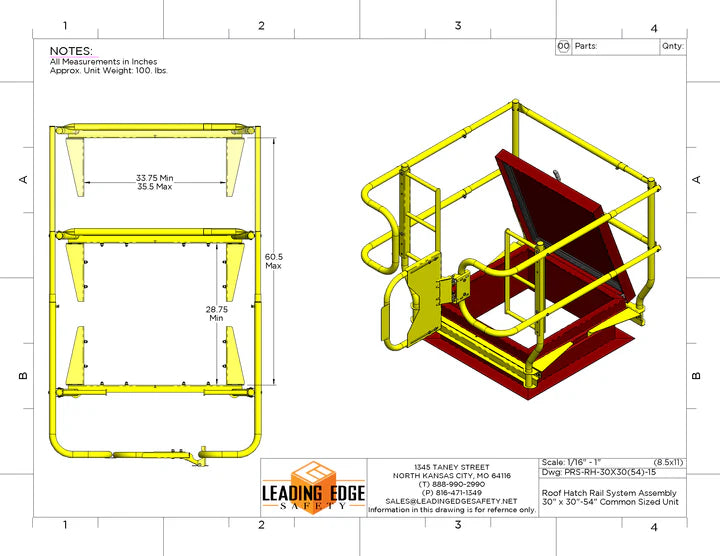

Mounting Specifications
Mounting Type #1 - Drip Flange Mount
Mounting Type #2 - Mechanically Fasten
Drip Flange Length - Minimum -28.75 in
Drip Flange Length - Maximum - 60.5 in
Drip Flange Width - Minimum - 33.75 in
Drip Flange Width - Maximum - 35.5 in
⚠ WARNING: Cancer - www.P65Warnings.ca.gov.
