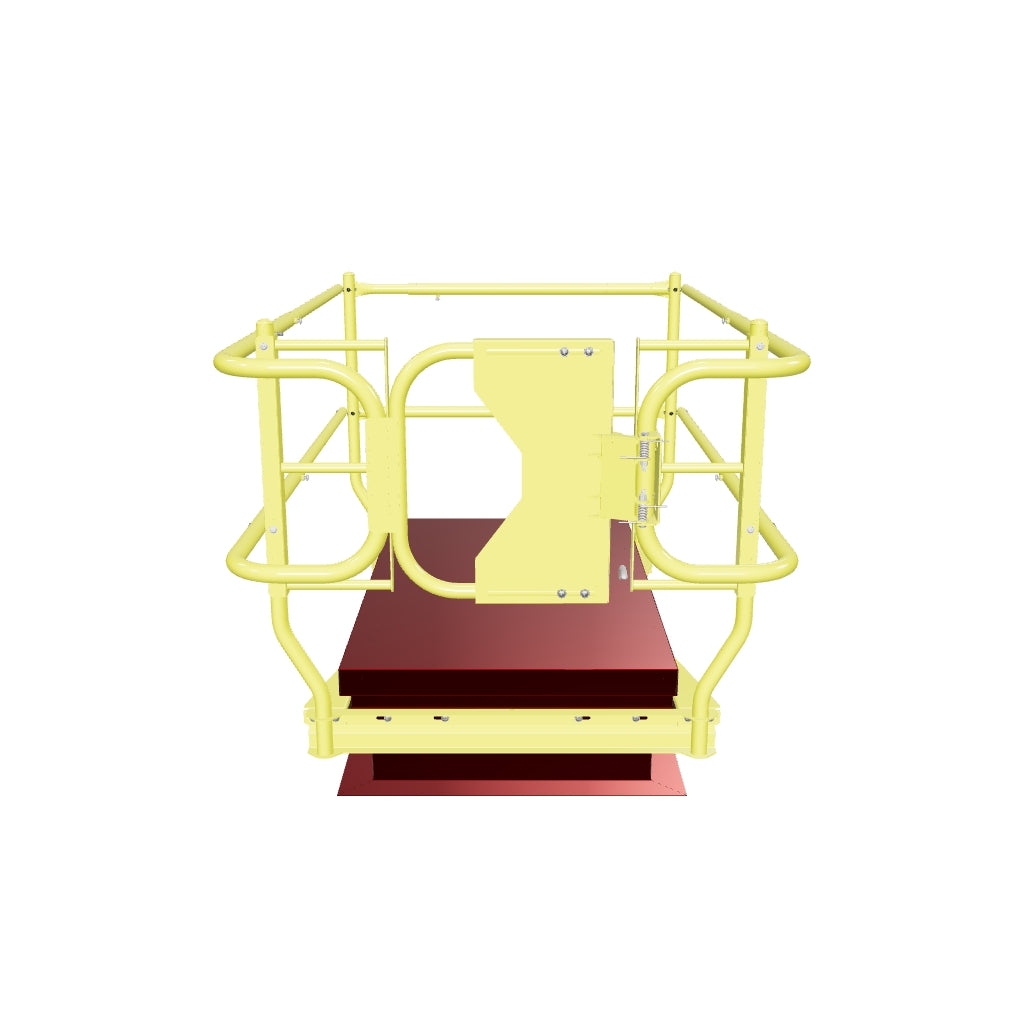

Leading Edge Safety Roof Hatch Rail System for 30" x 54-96" Hatches

Ensure safe access to your roof hatches with the Leading Edge Safety Roof Hatch Rail System. This comprehensive system is designed for hatches measuring 30" x 54-96" and includes all necessary components for installation.

System Components:

• Box "A30" - Roof Hatch Uprights and Hardware: Includes 2 vertical posts (30" wide), 2 adjustable rear horizontal rails (43-70"), and 4 support gussets.
• Box "E" - Roof Hatch Walkout with Adjustable Rails: Features 2 walk-out side rails and 4 adjustable rails (96").
• Box "C" - Roof Hatch Gate: Comes with 1 gate tube, 1 gate tube mount, and 1 hinge mount for secure access.

*Please note: Thermally broken hatches require specific mounting brackets. These must be requested at the time of purchase.

General Specifications:

• For Hatch Sizes: 30" x 54-96"
• Overall Length: 132.5 in
• Overall Width: 49 in
• Overall Height: 45 in
• Weight: 190 lb
• Compliant With: OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, USACE EM 385-1-1 (21.E.01 a-c)

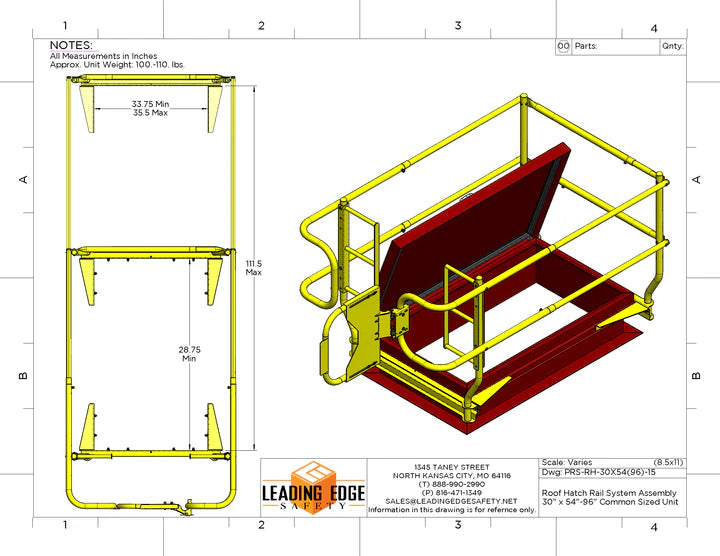

Mounting Specifications:

• Mounting Type #1: Drip Flange Mount
• Mounting Type #2: Mechanically Fasten
• Drip Flange Length (Min): 28.75 in
• Drip Flange Length (Max): 111.5 in
• Drip Flange Width (Min): 33.75 in
• Drip Flange Width (Max): 35.5 in
