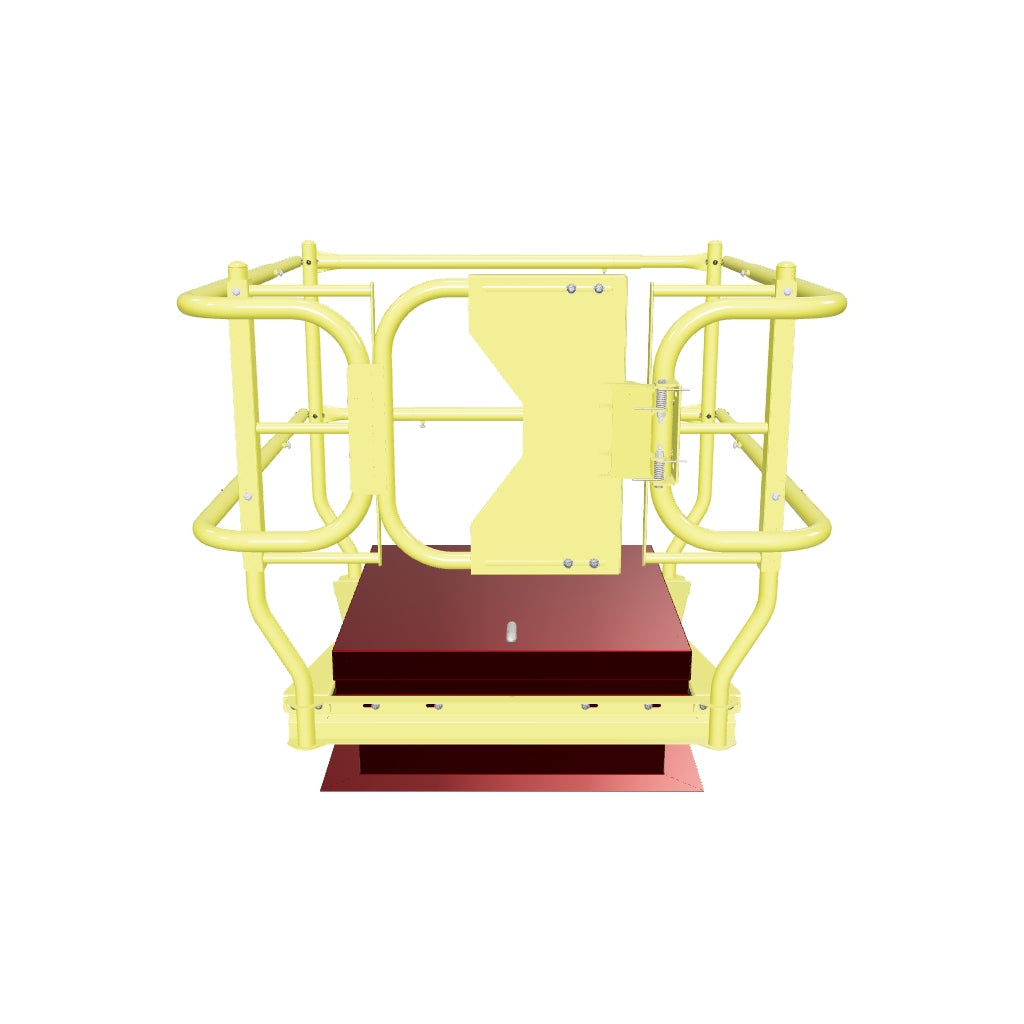

Roof Hatch Rail System For 36" X 30-54" Hatches PRS-RH-36X30-54-ASM

Roof Hatch Rail System For 36" X 30-54" Hatches PRS-RH-36X30-54-ASM

Regular price $2,219.00 USD
Regular price Sale price $2,219.00 USD
Sale Sold out
Shipping calculated at checkout.

Enhance Safety with the PRS-RH-36X30-54-ASM Roof Hatch Rail System

Secure your access with our robust Roof Hatch Uprights and Hardware (Box "D").

  • Includes two 36" wide Vertical Posts for stable mounting.
  • Features two Rear Horizontal Rails with adjustable length from 43-70 inches.
  • Comes with four Support Gussets for added strength.
  • Equipped with two RH GrabSafe 6" wide rails for secure grip.

Experience convenient access with the Roof Hatch Walkout featuring Adjustable Rails (Box "B54").

  • Includes two Walk-out side rails for easy entry.
  • Comes with four 36-54" Adjustable Rails for customizable width.

Ensure secure passage with the Roof Hatch Gate (Box "C").

  • 1 Gate Tube for a complete gate assembly.
  • 1 Gate Tube Mount for secure attachment.
  • 1 Hinge Mount for smooth gate operation.

*Please note: Thermally broken hatches require specific mounting brackets. Request these at the time of purchase.

General Specifications

Designed For Hatch Sizes - 36" x 30-54" Hatches
Overall Length - 81.5 in
Overall Width - 49 in
Overall Height - 45 in
Product Weight - 190 lb
Safety Compliances
OSHA CFR 1910.29
OSHA 29 CFR 1926.501
CAL-OSHA 3209
CAL-OSHA 3212
ANSI/ASSE A1264.1
ANSI/ASSE A14.3
USACE EM 385-1-1 (21.E.01 a-c)

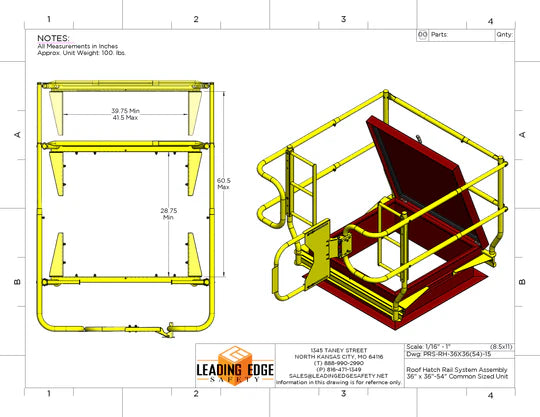

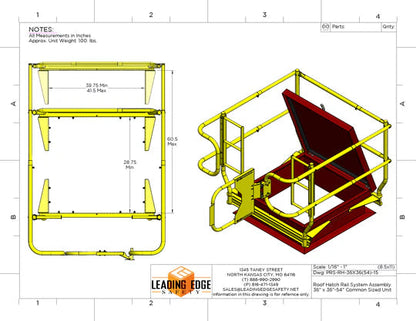

Mounting Specifications

Primary Mounting Type - Drip Flange Mount
Secondary Mounting Type - Mechanically Fasten
Drip Flange Length - Minimum Required - 28.75 in
Drip Flange Length - Maximum Allowed - 60.5 in
Drip Flange Width - Minimum Required - 39.75 in
Drip Flange Width - Maximum Allowed - 41.5 in
