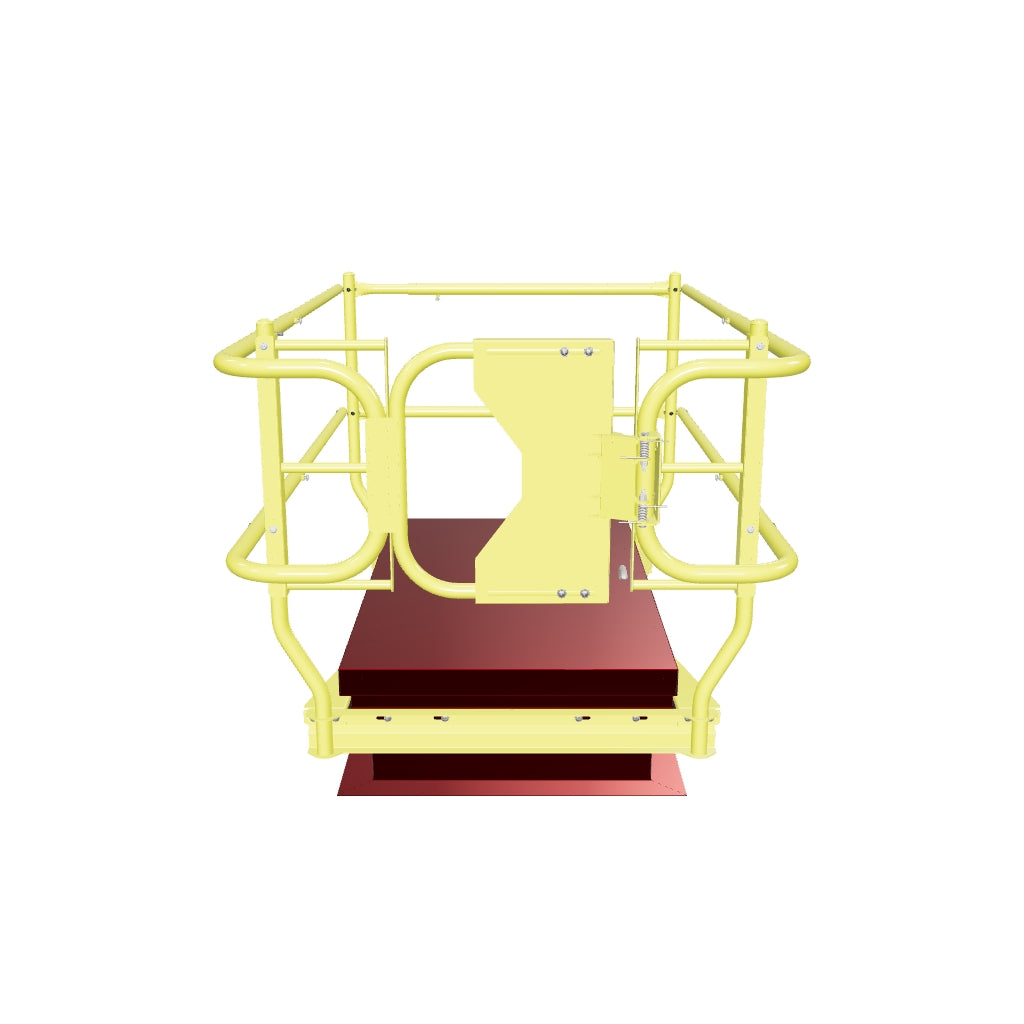

Roof Hatch Rail System For 36" X 54-96" Hatches PRS-RH-36X54-96-ASM

Roof Hatch Rail System For 36" X 54-96" Hatches PRS-RH-36X54-96-ASM

$2,428.00 USD
$2,428.00 USD
Sale Sold out
Shipping calculated at checkout.

Roof Hatch Rail System For 36" X 54-96" Hatches - Safety Solution

Roof Hatch Uprights and Hardware. Box "D"
Ensure safety and compliance with our robust Roof Hatch Uprights and Hardware kit. Designed for 36" wide hatches, this kit includes essential components for secure access and fall prevention.

  • 2 - Vertical Posts 36" wide
  • 2 - Rear Horizontal Rails (adjustable from 43" to 70")
  • 4 - Support Gussets
  • 2 - RH GrabSafe 6" wide

Roof Hatch Walkout with Adjustable Rails. Box "E"
Enhance your roof access with our adjustable walkout system. Perfect for larger hatch dimensions, providing secure and adaptable rail solutions.

  • 2 - Walk out, side rails
  • 4 - 96" Adjustable Rails

Roof Hatch Gate. Box "C"
Complete your roof access setup with our integrated gate system. Designed for secure closure and easy operation.

  • 1- Gate Tube
  • 1- Gate Tube Mount
  • 1 - Hinge Mount

*Important: Thermally broken hatches require specific mounting brackets. Please request these at the time of purchase.

General Specifications

For Hatch Sizes - 36" X 54-96" Hatches
Length - 132.5 in
Width - 55 in
Height - 45 in
Weight - 185 lb
Compliant With
OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, USACE EM 385-1-1 (21.E.01 a-c)

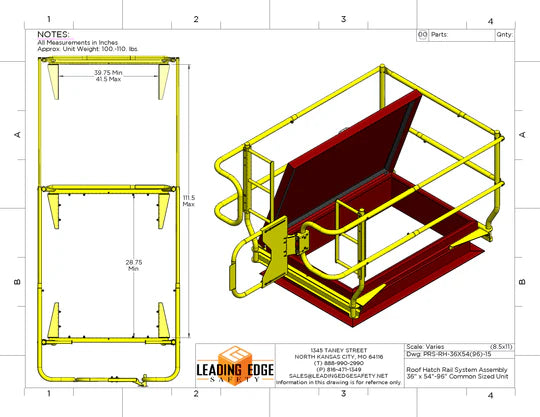

Mounting Specifications

Mounting Type #1 - Drip Flange Mount
Mounting Type #2 - Mechanically Fastened
Drip Flange Length - Minimum - 28.75 in
Drip Flange Length - Maximum - 111.5 in
Drip Flange Width - Minimum - 39.75 in
Drip Flange Width - Maximum - 41.5 in

The PRS-RH-36X54-96-ASM Roof Hatch Rail System is a comprehensive solution designed for enhanced safety and accessibility on rooftops. This system is ideal for ensuring compliance with OSHA and other safety standards, providing secure access to hatches ranging from 36" wide and 54" to 96" long. It includes all necessary components for installation, such as vertical posts, adjustable horizontal rails, support gussets, and a secure gate system. The system is built for durability and ease of use, ensuring reliable fall protection and operational efficiency.

Key Features:
  • Robust construction for 36" X 54-96" roof hatches.
  • Includes uprights, rails, and gate components for a complete system.
  • Adjustable rails for flexible configuration.
  • Compliant with major safety regulations including OSHA, CAL-OSHA, and ANSI/ASSE standards.
  • Available with Drip Flange Mount or Mechanically Fastened options.
  • Thermally broken hatch compatibility with special bracket requests.
Upgrade your rooftop safety and accessibility with the PRS-RH-36X54-96-ASM Roof Hatch Rail System.
