Roof Hatch Rail System For 48" X 40-71" Hatches PRS-RH-48X40-71-ASM

Roof Hatch Rail System For 48" X 40-71" Hatches PRS-RH-48X40-71-ASM

Regular price $2,480.00 USD
Regular price Sale price $2,480.00 USD
Sale Sold out
Shipping calculated at checkout.

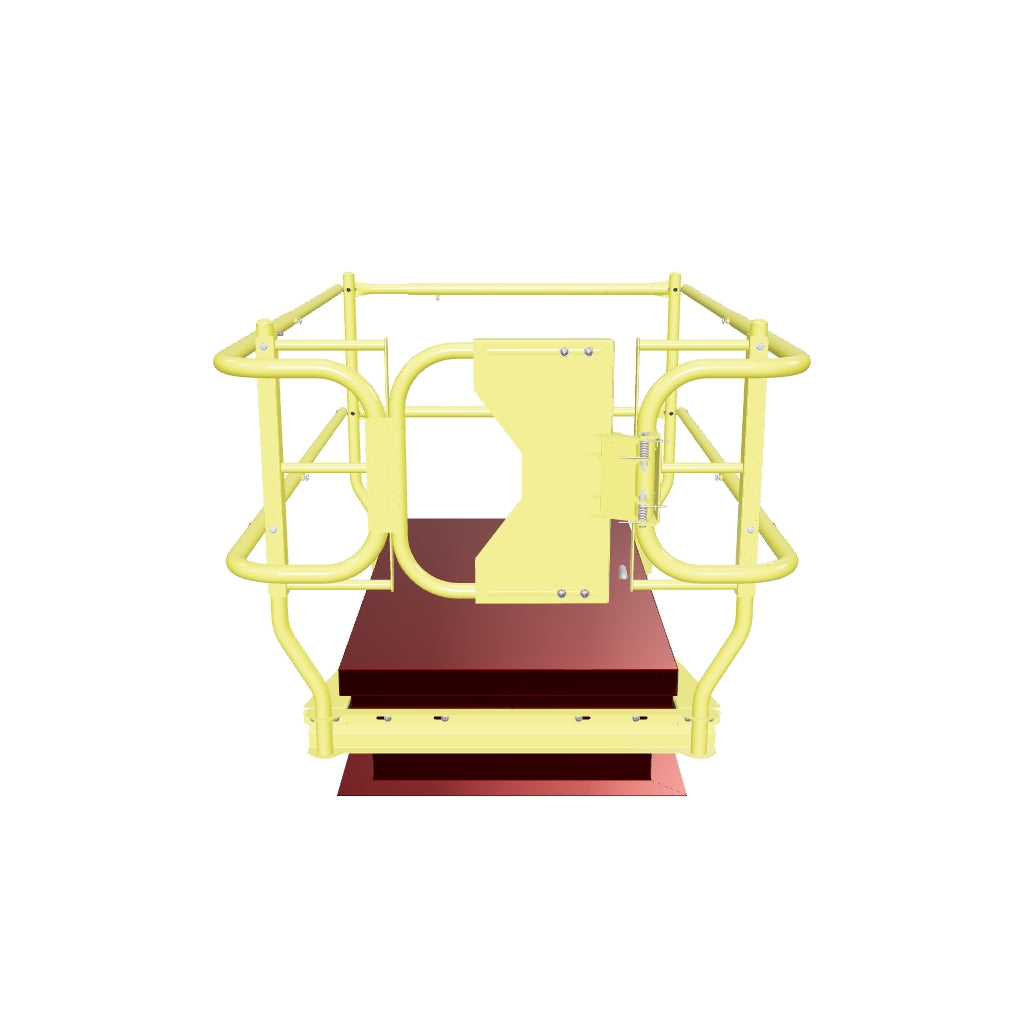

Elevate Your Safety with the PRS-RH-48X40-71-ASM Roof Hatch Rail System

Ensure maximum safety and compliance with our robust Roof Hatch Rail System, specifically designed for 48" x 40-71" hatches. This comprehensive system provides secure access and fall protection, meeting stringent OSHA, CAL-OSHA, and ANSI standards.

Key Components Included:

Roof Hatch Uprights and Hardware (Box "A48"):

  • 2 x 48" Wide Vertical Posts for sturdy support.
  • 2 x Rear Horizontal Rails, adjustable from 43" to 70" for a customizable fit.
  • 4 x Support Gussets for enhanced stability.
  • 2 x RH GrabSafe 16" Wide for secure handholds.

Roof Hatch Walkout with Adjustable Rails (Box "B54"):

  • 2 x Walk-out side rails for easy entry and exit.
  • 4 x 36-54" Adjustable Rails for adaptable configurations.

Roof Hatch Gate (Box "C"):

  • 1 x Gate Tube for a complete access solution.
  • 1 x Gate Tube Mount for secure attachment.
  • 1 x Hinge Mount for smooth gate operation.

Additional Hardware: Extension Tubes and Hardware for a 26-41" adjustable gate are also included.

Important Note: For thermally broken hatches, different mounting brackets are required. Please specify this need at the time of purchase.

General Specifications
For Hatch Sizes - 48" X 40-71" Hatches
Length - 81.5 in
Width - 67 in
Height - 45 in
Weight - 195 lb

Compliant With
OSHA CFR 1910.29
OSHA 29 CFR 1926.501
CAL-OSHA 3209
CAL-OSHA 3212
ANSI/ASSE A1264.1
ANSI/ASSE A14.3
USACE EM 385-1-1 (21.E.01 a-c)

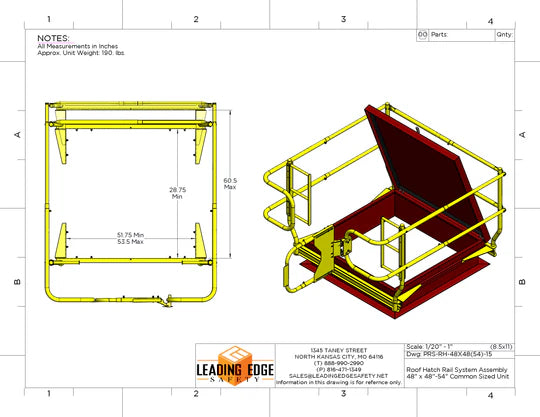

Mounting Specifications
Mounting Type #1 - Drip Flange Mount
Mounting Type #2 - Mechanically Fasten
Drip Flange Length - Minimum - 28.75 in
Drip Flange Length - Maximum - 60.5 in
Drip Flange Width - Minimum - 51.75 in
Drip Flange Width - Maximum - 53.5 in
⚠ WARNING: Cancer - www.P65Warnings.ca.gov.
