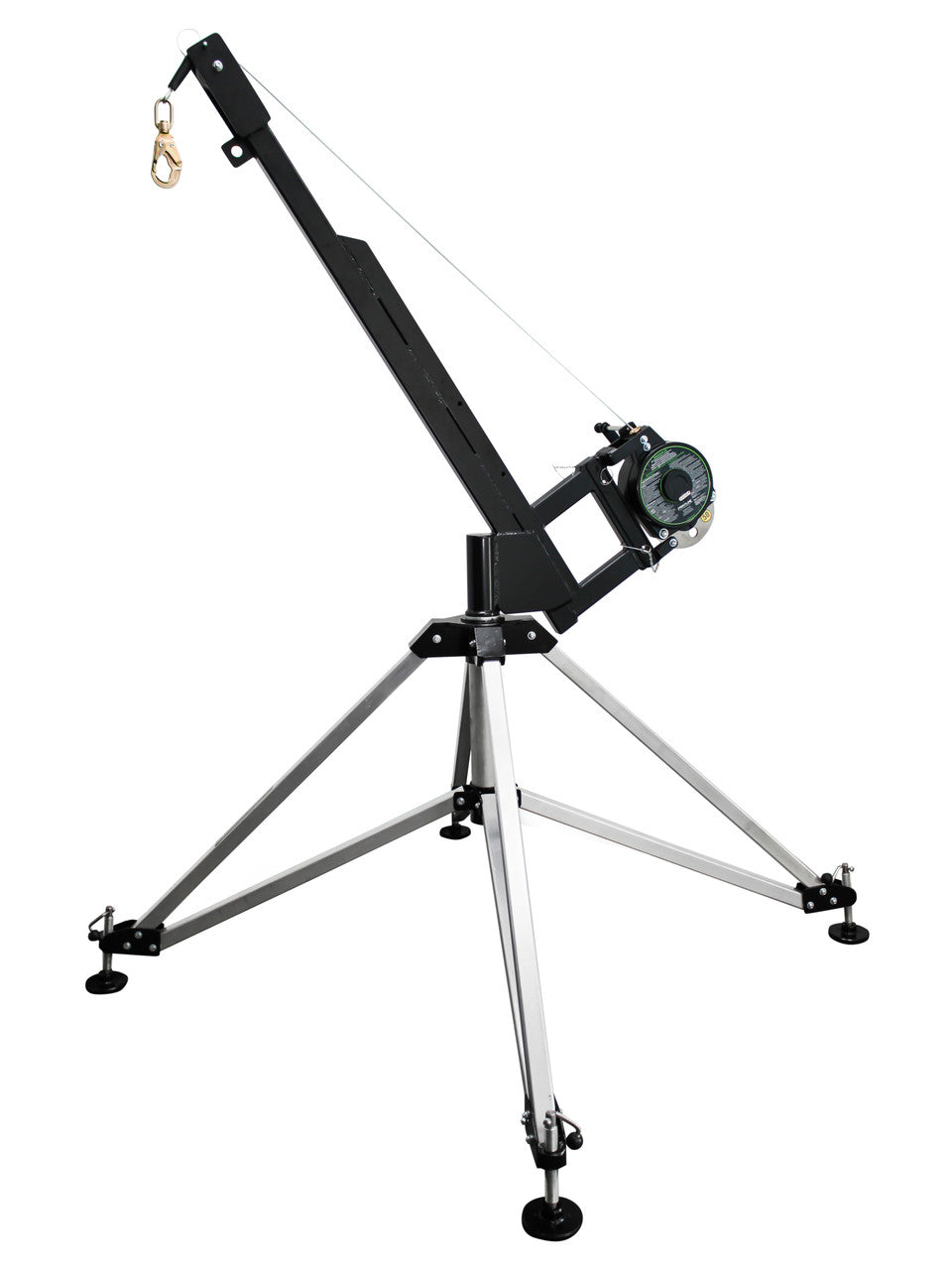

Frontline QAN75RA-US Confined Space Quadpod with 50' 3-Way Retrieval System

Working in confined spaces sometimes can be extremely hazardous activities where both the entrant and attendant need such equipment that will perform to its limits when put to the test!

The Quadpod system is composed of four adjustable legs for better stability and a 360° rotating boom to easily position the fall arrest and rescue point over the confined space entry making it unique and different over other equipment. The Quadpod comes with a 3-way retrieval system that serves to lower, raise, rescue personal and can also be used as an SRL with the simple switch of a knob in just seconds!

With the Proudly Union Made in the USA Frontline Patriot™ line, rest assured that you will have some of the best driven quality, durability and reliability confined space equipment out in the market!

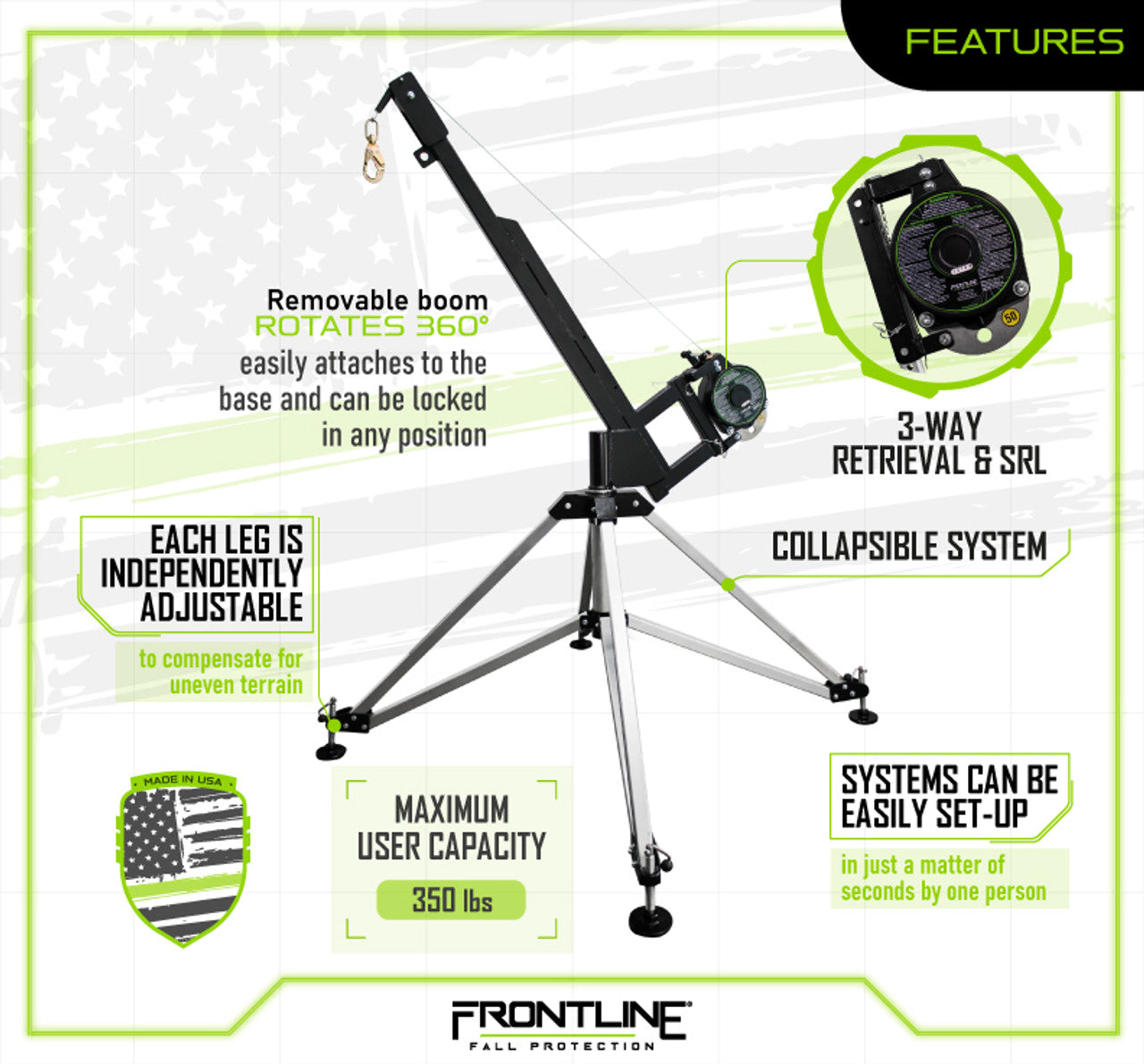

Quadpod Features:

• The Quadpod is easily set-up in just a matter of seconds, no tools required and can be done by one person

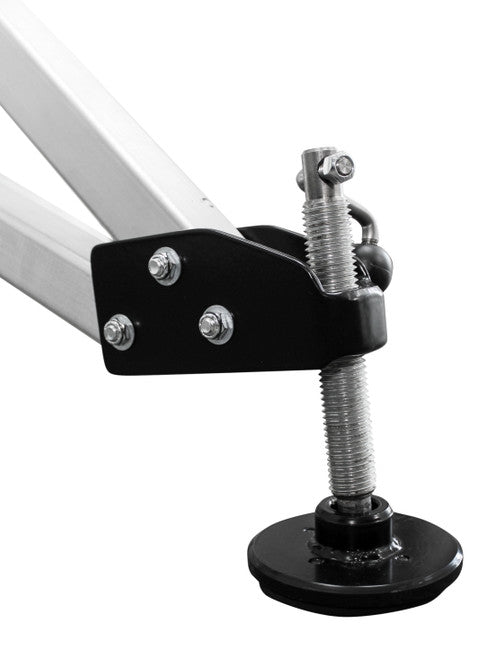

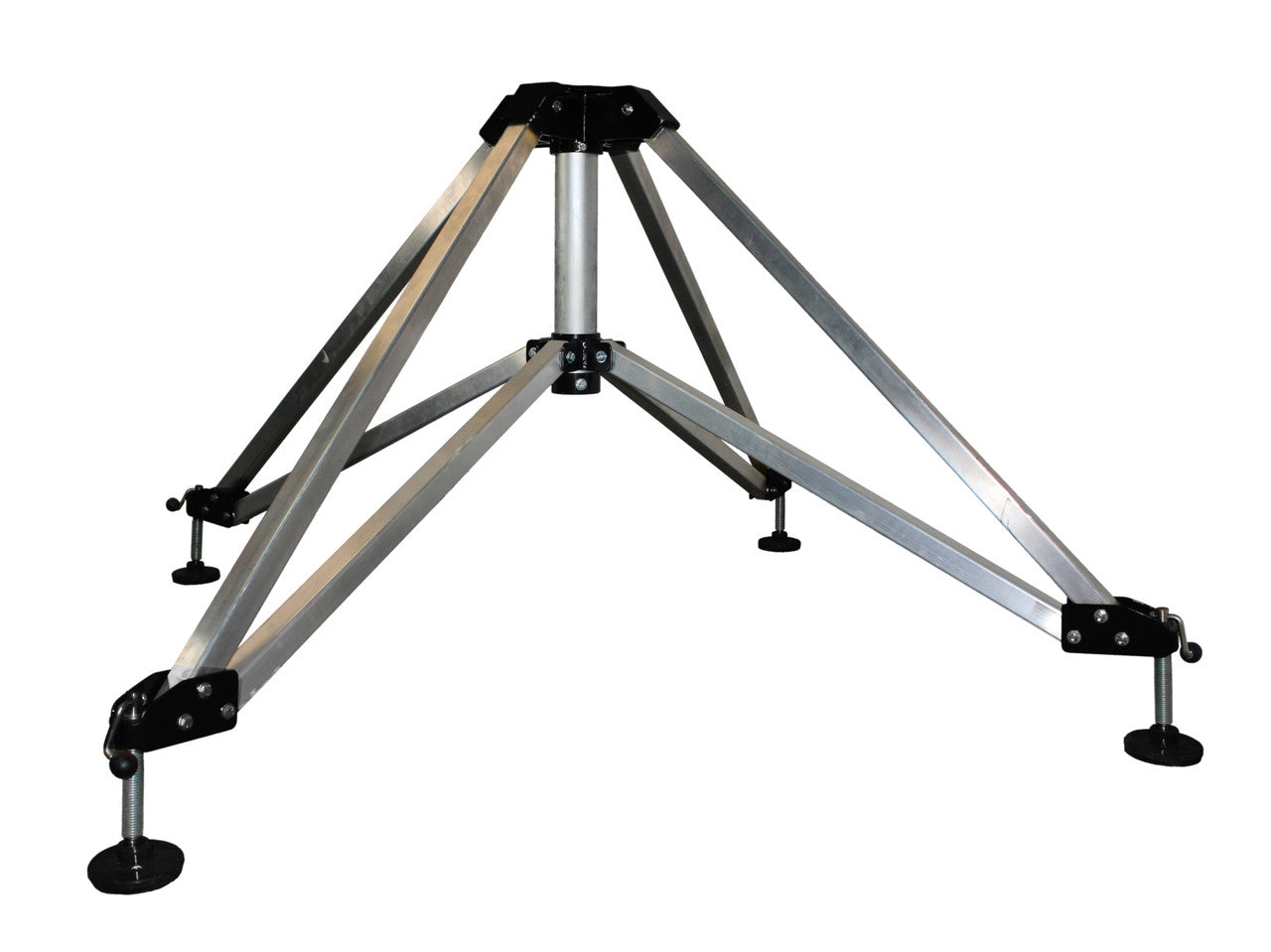

• System is collapsible and each leg is independently adjustable to compensate for uneven terrain
• The removable boom rotates 360° and locks in any position allowing easy positioning over confined space entry
• Quadpod and davit components can be used interchangeably
• The system is made out of durable aluminum and powder coated steel and the boom is powder coated steel
• Ideal for situations where the use of a tripod is impractical

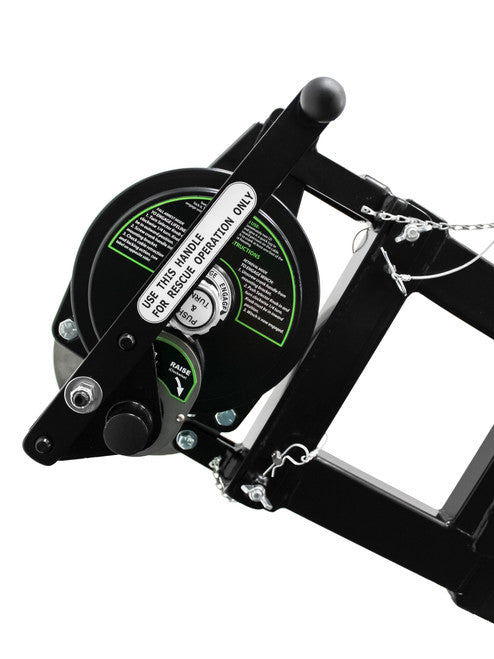

3-Way Features:

• Includes precision internal components and a strong, weather-resistant cast aluminum housing to ensure reliability and dependability
• The Patriot™model has two independent braking systems:
• An energy absorbing centrifugal brake arrests a fall softly within 24"
• A friction brake which activates immediately when raising or lowering is stopped and holds the load in place
• Housing is made of sturdy lightweight cast aluminum, making it long lasting and reliable

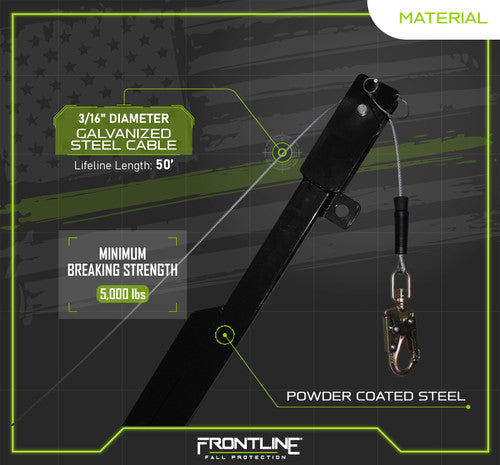

• Comes with 3/16" diameter galvanized steel cable with locking swivel snaphook with impact indicator

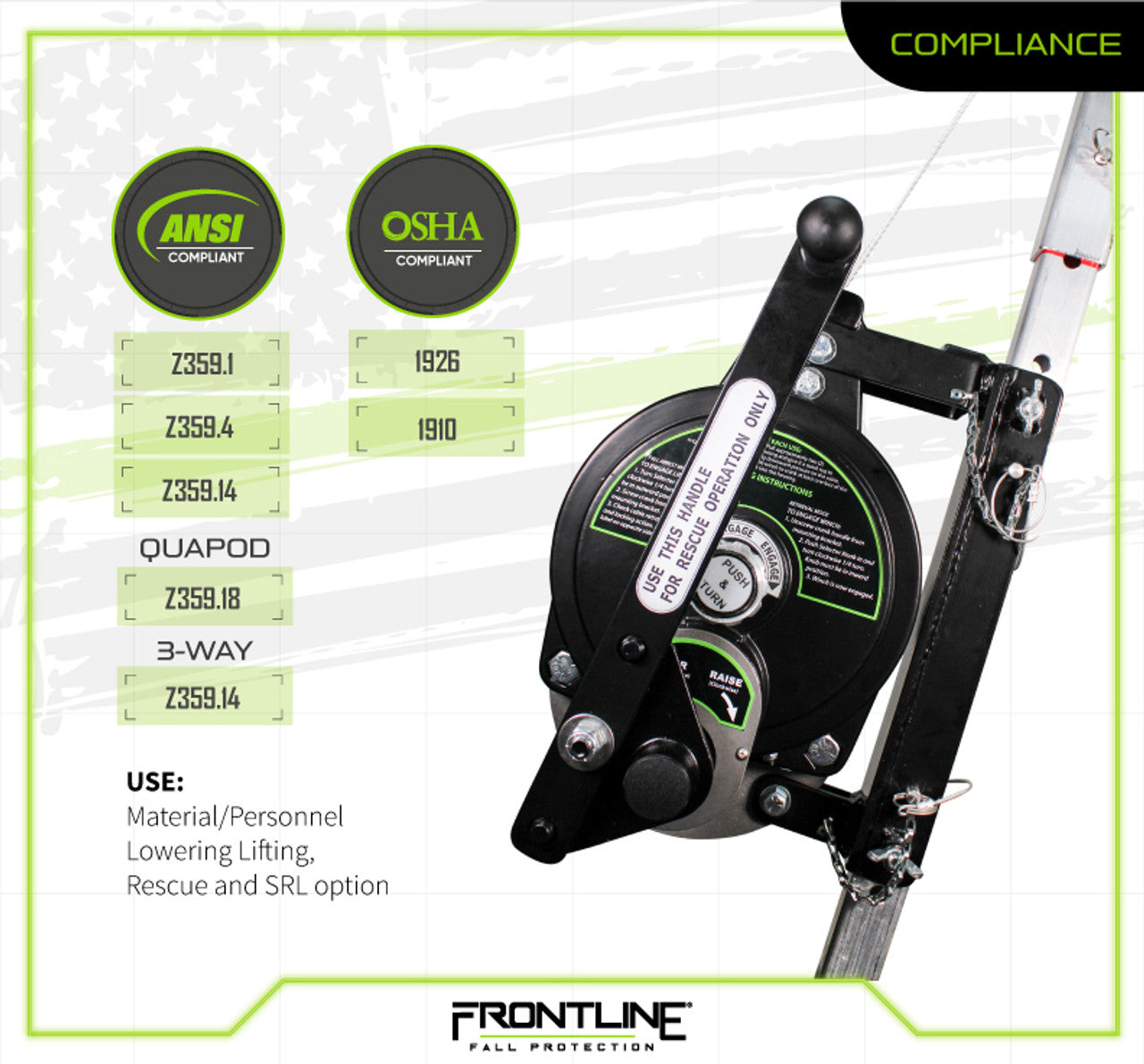

Specs and Compliance:

• Use: Material/Personnel Lowering, Lifting, Rescue and SRL option
• Lifeline Length: 50’
• Maximum User Capacity: 350 lbs.
• Quadpod: Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.18
• 3-Way: Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.14
