RAP-012-35-23: Permanent Fall Protection Roof Anchor for Steel Structures

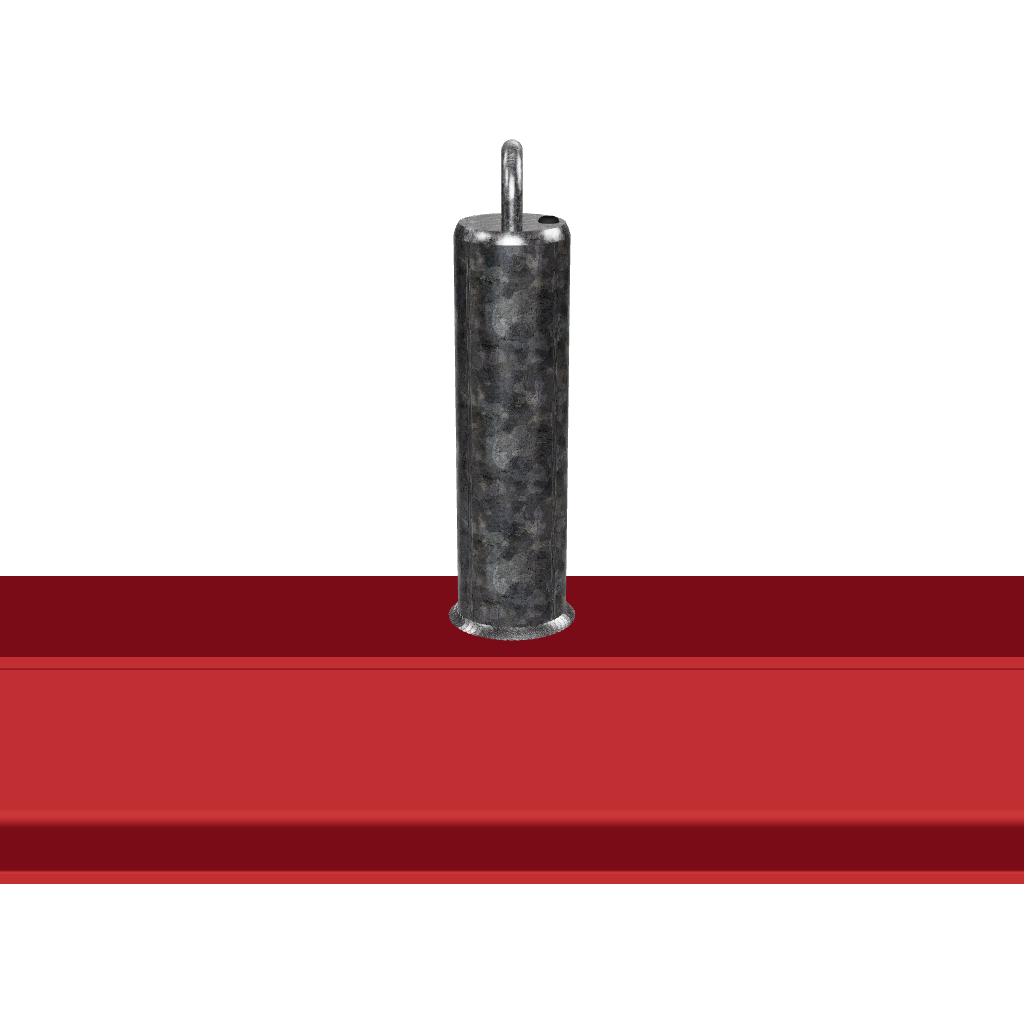

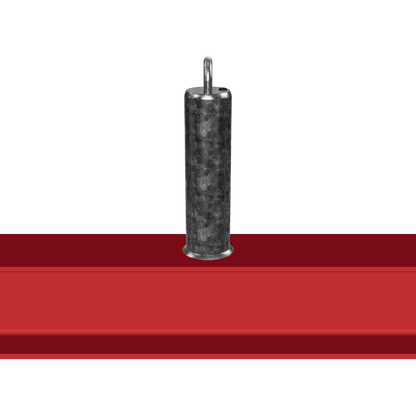

Enhance safety on your job site with the RAP-012-35-23, a robust and permanent fall protection roof anchor point specifically designed for steel structures. This 12-inch tall anchor is engineered for direct welding onto steel beams, providing a secure and reliable tie-off point for your fall arrest systems.

Featuring a strong 3" Schedule 40 steel upright, this anchor ensures superior strength and stability under load. The integrated 5/8" forged “D” ring offers a dependable connection point for lanyards, lifelines, and other essential fall protection equipment.

Crafted from high-quality galvanized steel, the RAP-012-35-23 is built to withstand harsh weather conditions and resist corrosion, making it an ideal choice for long-term outdoor and industrial applications. Ensure compliance and safety with this OSHA-compliant anchor.

Key Features for Ultimate Safety:

• Heavy-Duty Construction: A robust 3" Schedule 40 steel upright guarantees maximum strength and durability.
• Secure Attachment Point: The 5/8" forged “D” ring provides a reliable tie-off for fall protection.
• Permanent Weld-On Design: Optimized for secure, permanent installation directly onto steel beams.
• Corrosion Resistance: The galvanized finish protects against rust and environmental damage for extended use.
• OSHA & ANSI Compliant: Meets or exceeds critical safety standards including OSHA 1926, OSHA 1910, ANSI Z359.18, and ANSIA10.32.

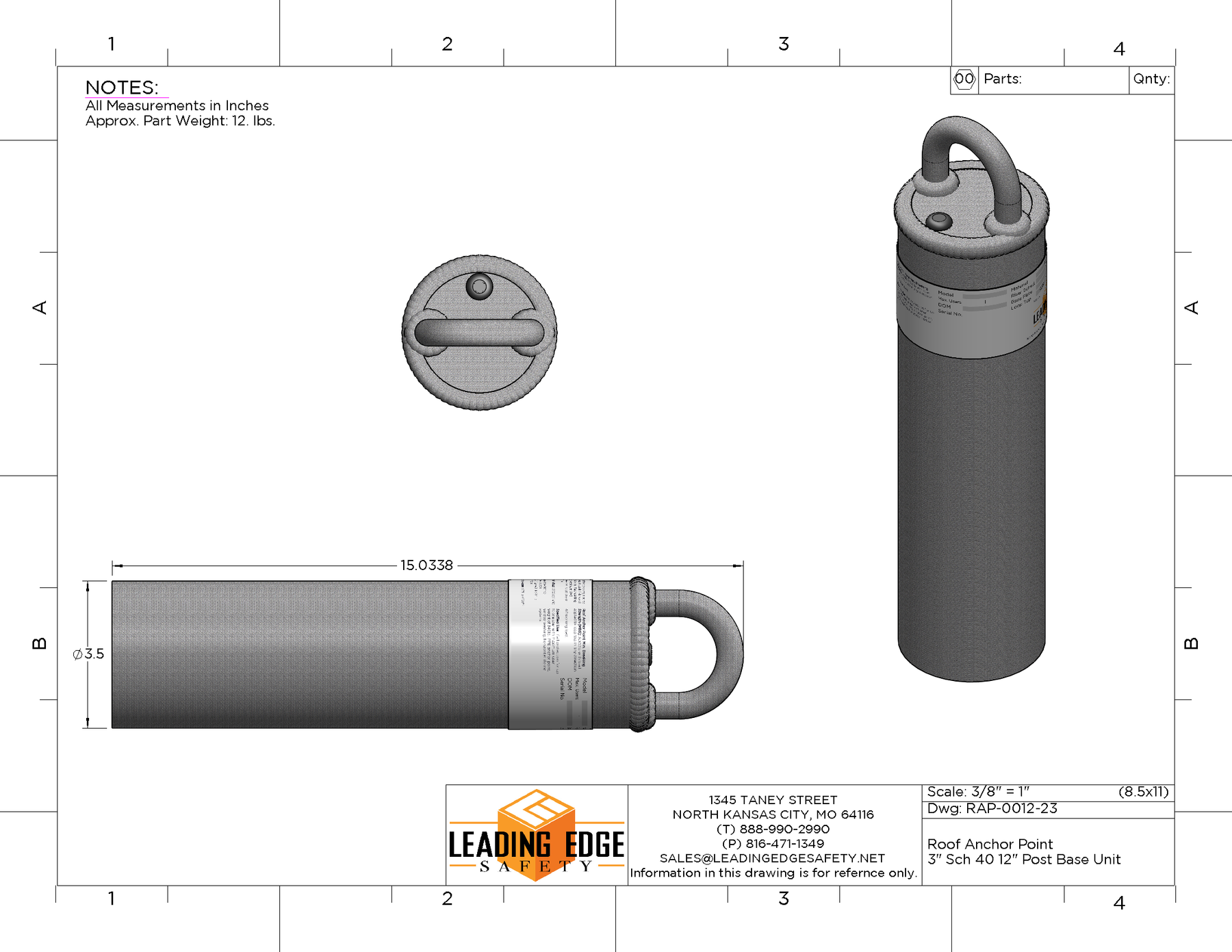

Specifications:

• Minimum Breaking Strength: 5,000 lbs
• Anchor Height: 3.5 inches
• Length: 3.5 inches
• Width: 3.5 inches
• Overall Height: 15 inches
• Weight: 9 lbs
• Material: ASTM Rated Steel, Hot Dipped Galvanized
