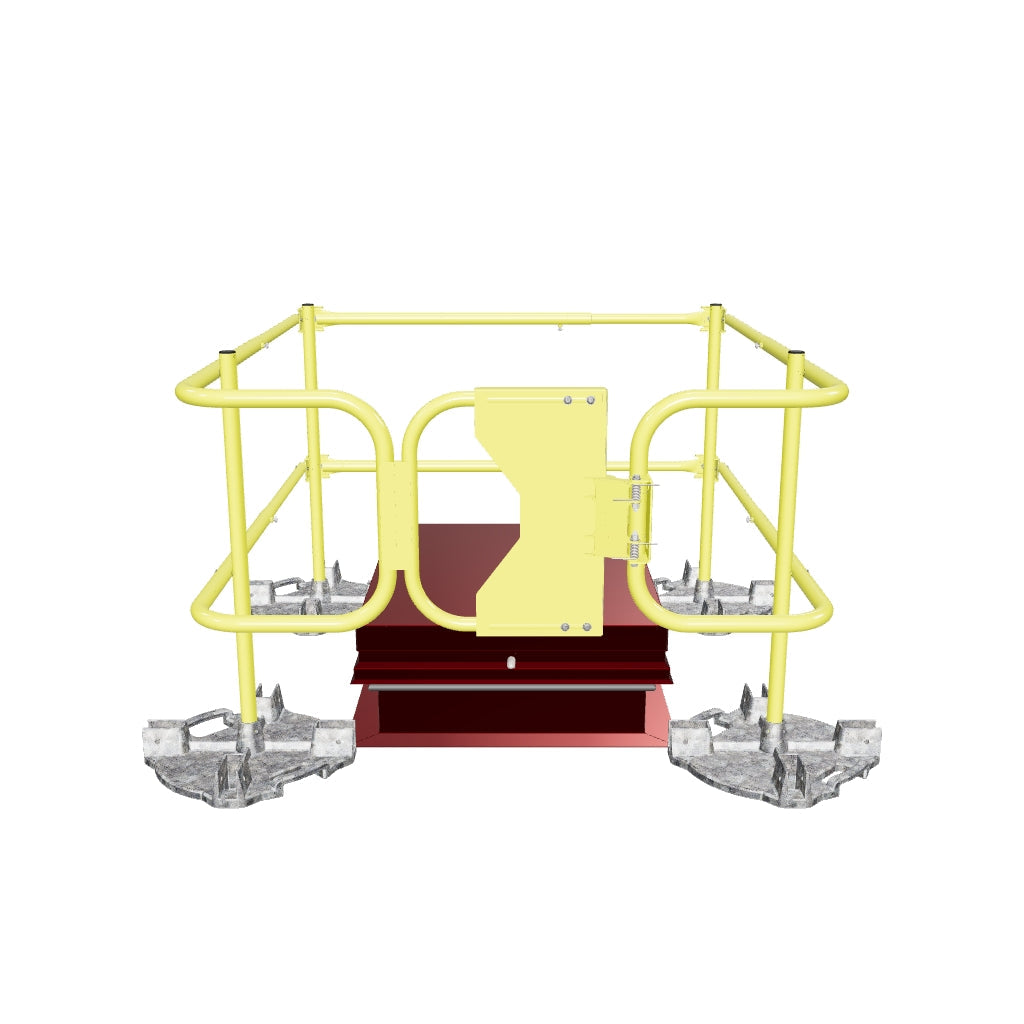

Ballasted Roof Hatch Guardrail For A 30" X 36" Hatch

Enhance workplace safety with the WBRH-30X36-18-ASM Ballasted Roof Hatch Guardrail system, designed for a 30" X 36" hatch opening. This robust guardrail system ensures compliance with OSHA and other safety standards, providing a secure barrier around roof hatches to prevent falls.

• Key Components:
• 4 - Galvanized Weighted Bases
• 4 - Weighted Base Posts
• 4 - Weighted Base Adjustable Corners
• 2 - Medium Adjustable Rails (70” - 43”)
• 2 - Walk-out Side Rails
• 4 - 36-54" Adjustable Rails
• 1 - Gate Tube
• 1 - Gate Tube Mount
• 1 - Hinge Mount

Features:

• Secure & Reliable: Provides a continuous passive fall protection system around roof hatches.
• Versatile Mounting: Features a ballasted mounting type, eliminating the need for roof penetration, and an optional direct-to-roof mounting option.
• Adjustable Rails: Allows for flexible configuration to fit various hatch and roof configurations.
• Durable Construction: Made with galvanized steel for long-lasting performance in outdoor environments.
• Compliant: Meets stringent safety standards including OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, and USACE EM 385-1-1 (21.E.01 a-c).

General Specifications:

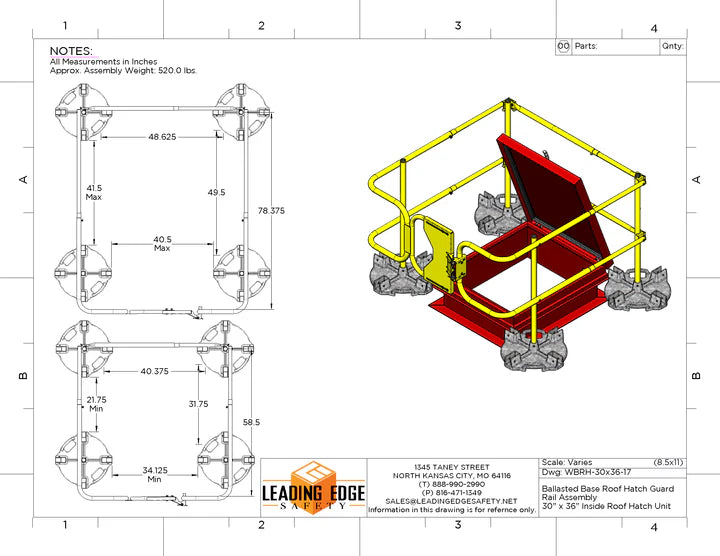

• For Hatch Sizes: 30" X 36"
• Length: 73.56 in
• Width: 79.12 in
• Height: 41.5 in
• Weight: 525 lb

Mounting Specifications:

• Mounting Type: Ballasted or Direct to roof
• Drip Flange Length: Minimum 21.75 in, Maximum 41.5 in
• Drip Flange Width: Minimum 34.13 in, Maximum 40.5 in

Box Contents:

• Box "B54" (Roof Hatch Walkout with Adjustable Rails)
• Box "C" (Roof Hatch Gate)
