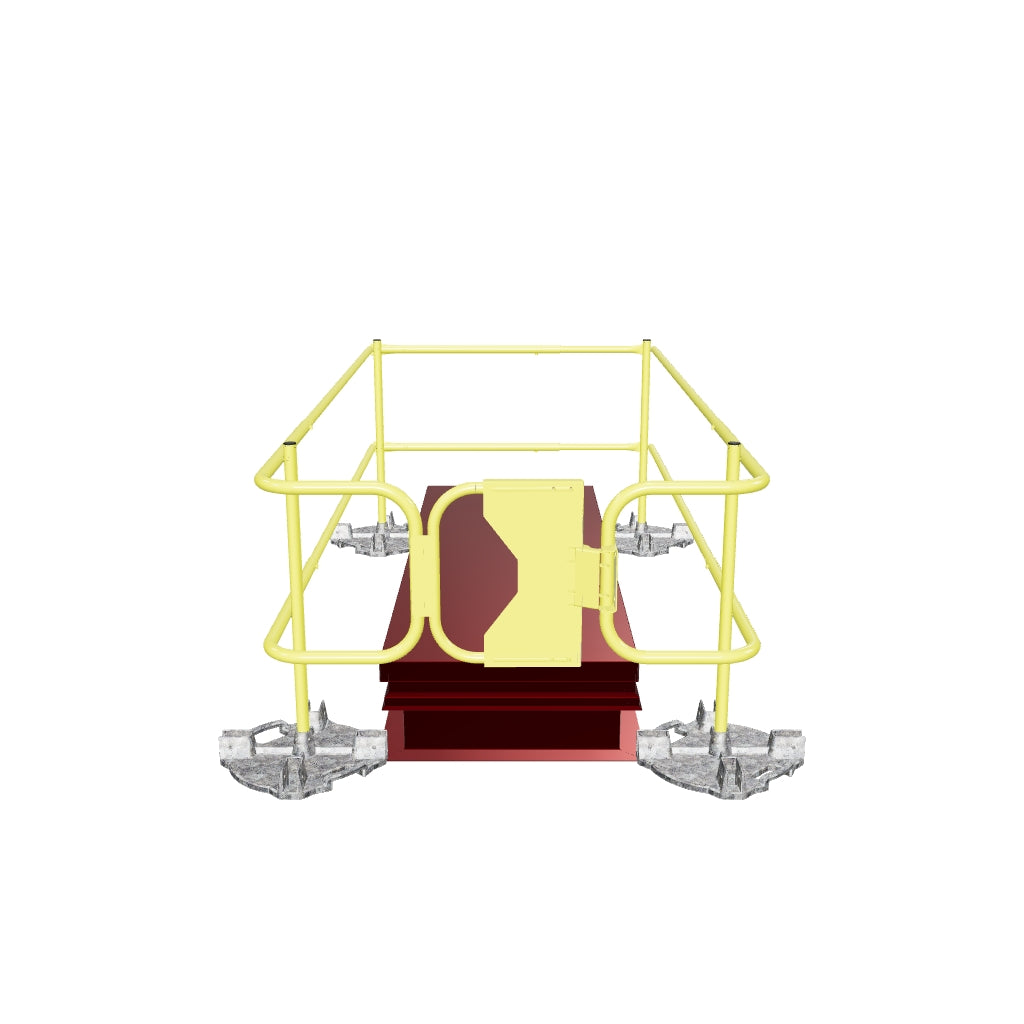

WBRH-30X96-18-ASM Ballasted Roof Hatch Guardrail System for 30" X 96" Hatches

Ensure safety and compliance with the WBRH-30X96-18-ASM Ballasted Roof Hatch Guardrail System. Designed for 30" x 96" roof openings, this robust system provides a secure barrier, reducing fall hazards and meeting stringent safety regulations. Its ballasted mounting system offers a non-penetrating solution, ideal for various roofing membranes.

• System Components:
  • 4 x Galvanized Weighted Bases
  • 4 x Weight Base Posts
  • 4 x Weighted Base Adjustable Corners
  • 2 x Medium Adjustable Rails (70" - 43")
  • 1 x 93" Rear Side Adjustable Rail
• Roof Hatch Walkout Features:
  • 2 x Walkout Side Rails
  • 4 x 36-54" Adjustable Rails
• Roof Hatch Gate Features:
  • 1 x Gate Tube
  • 1 x Gate Tube Mount
  • 1 x Hinge Mount

General Specifications:

• For Hatch Sizes: 30" X 96"
• Overall Dimensions: Approximately 124.56" L x 79.12" W x 41.5" H
• Weight: 535 lb
• Compliance Standards: OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, USACE EM 385-1-1 (21.E.01 a-c)

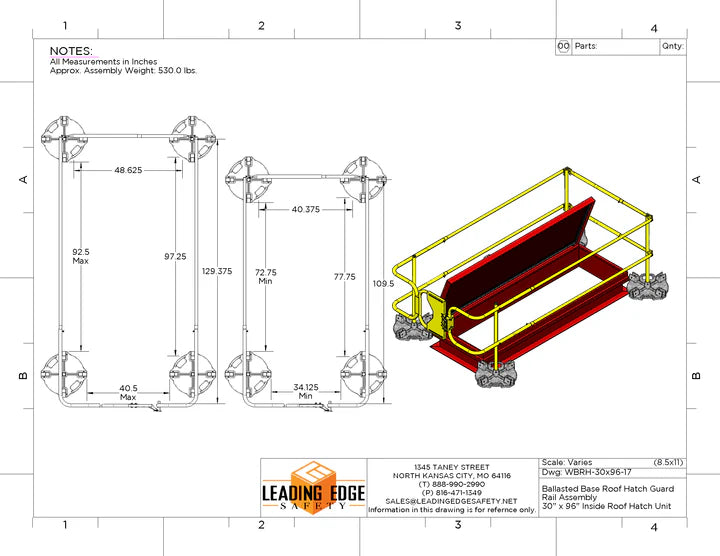

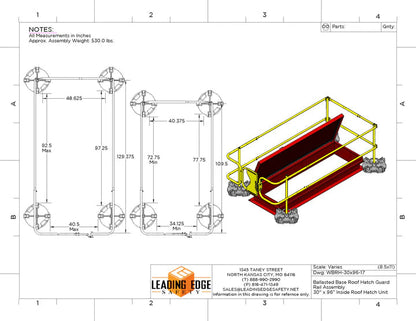

Mounting Specifications:

• Mounting Type: Ballasted (non-penetrating) or Direct to Roof
• Drip Flange Length (Min/Max): 72.75" - 92.5"
• Drip Flange Width (Min/Max): 34.13" - 40.5"

Important Note: Please refer to the included Instruction Manual and How to Measure Guide for detailed installation and measurement procedures.
