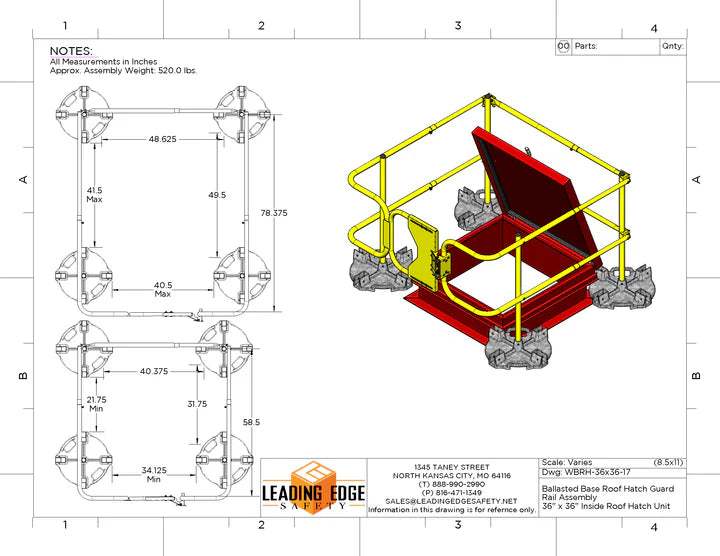

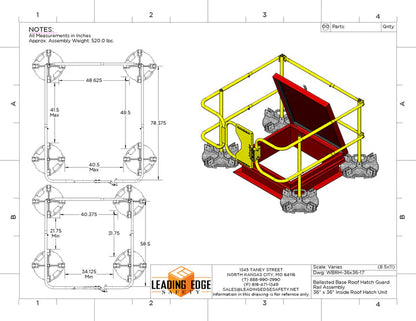

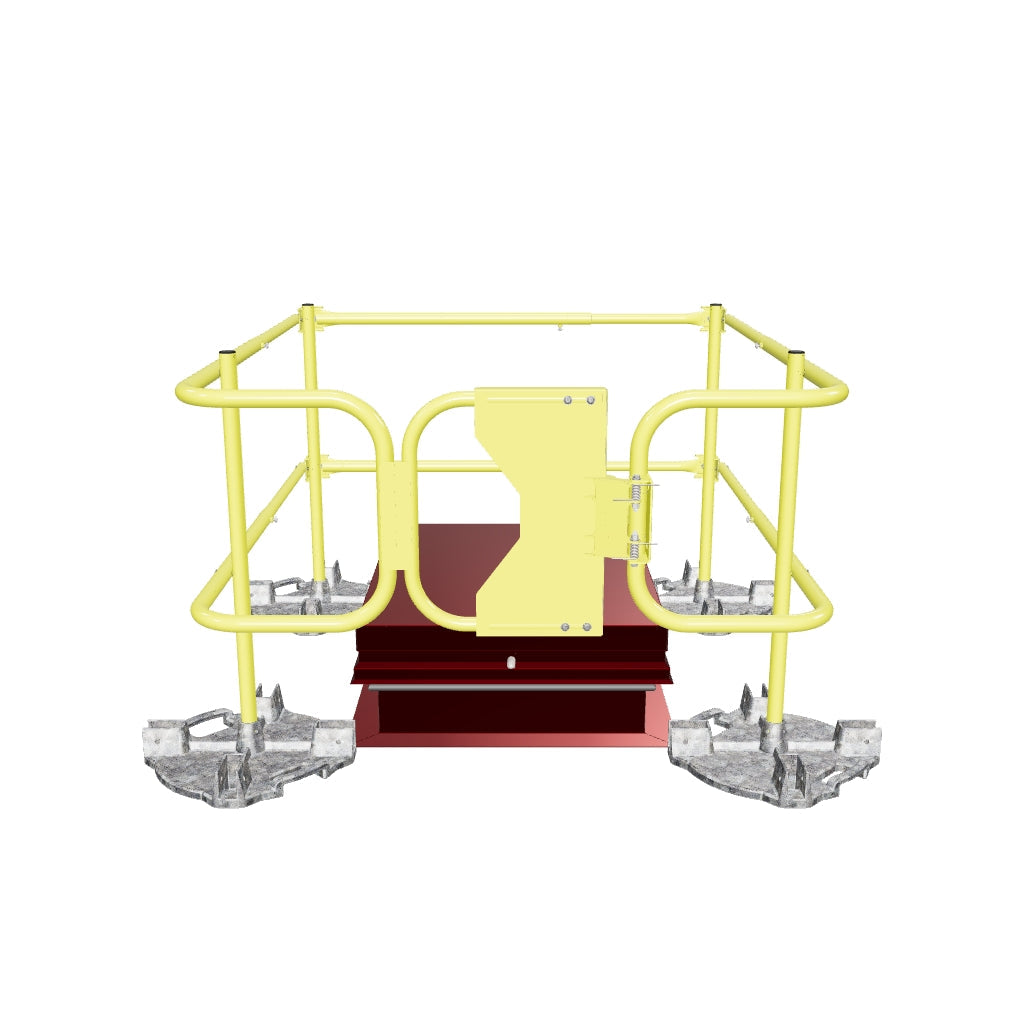

WBRH-36X36-17-ASM: Ballasted Roof Hatch Guardrail System for 36" X 36" Hatches

Ensure rooftop safety with the WBRH-36X36-17-ASM, a robust ballasted roof hatch guardrail system designed for standard 36" x 36" openings. This system provides a secure and compliant fall protection solution without the need for roof penetration.

Key Components:

• Weighted Bases: 4 Galvanized weighted bases provide stability and distribute load.
• Posts: 4 Weight Base Posts to support the guardrail structure.
• Adjustable Corners: 4 Weighted Base Adjustable Corners for flexible configuration.
• Adjustable Rails: 2 Medium Adjustable Rails (70" - 43") for customizable spacing.

Roof Hatch Walkout with Adjustable Rails (Box "B54"):

• 2 Walk-out, side rails
• 4 (36"-54") Adjustable Rails

Roof Hatch Gate (Box "C"):

• 1 Gate Tube
• 1 Gate Tube Mount
• 1 Hinge Mount

General Specifications:

• For Hatch Sizes: 36" X 36"
• Length: 73.5 in
• Width: 79.12 in
• Height: 41.5 in
• Weight: 525 lb
• Compliance: OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, USACE EM 385-1-1 (21.E.01 a-c)

Mounting Specifications:

• Mounting Type: Ballasted or Direct to roof
• Drip Flange Length (Min-Max): 21.75 in - 41.5 in
• Drip Flange Width (Min-Max): 34.13 in - 40.5 in

This guardrail system offers a safe, reliable, and compliant solution for accessing roof hatches, meeting stringent safety standards for various industries.
