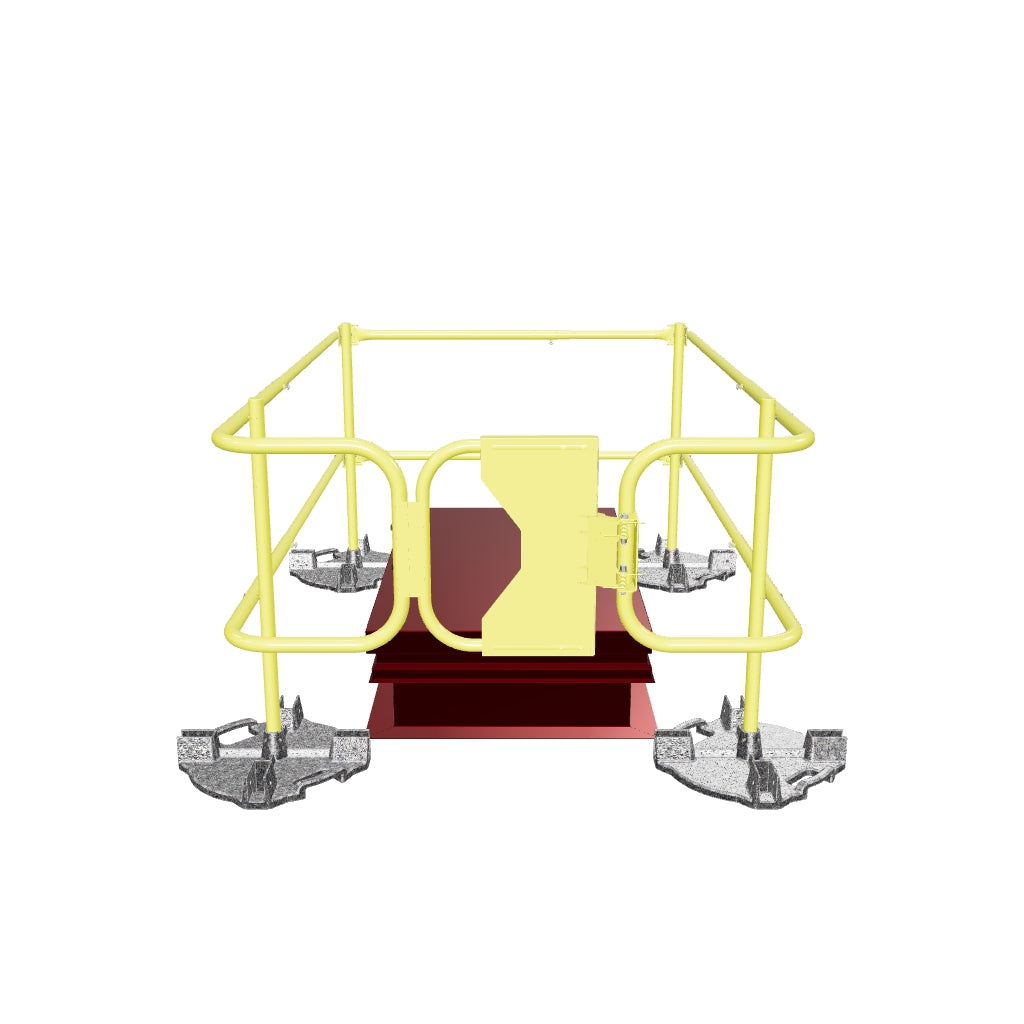

Ballasted Roof Hatch Guardrail System for 36" X 54" Hatches

Ensure safety and compliance with our robust Ballasted Roof Hatch Guardrail system, designed for standard 36" x 54" roof hatches. This comprehensive kit includes all necessary components for a secure and reliable installation without the need for roof penetration.

Key Components:

• 4 - Galvanized Weighted Bases: Provides stability and ballast.
• 4 - Weight Base Posts: Connects bases to the guardrail structure.
• 4 - Weighted Base Adjustable Corners: Allows for flexible configuration and secure joints.
• 2 - Medium Adjustable Rails (70" - 43"): Configure side protection as needed.
• 1 - 57" Rear Side Adjustable Rail: Completes the perimeter protection.
• 2 - Walk-out Side Rails: Facilitates safe access and egress.
• 4 - 36-54" Adjustable Rails: Versatile rails for customized guardrail lengths.
• 1 - Gate Tube, 1 - Gate Tube Mount, 1 - Hinge Mount: Creates a convenient and secure gate for access.

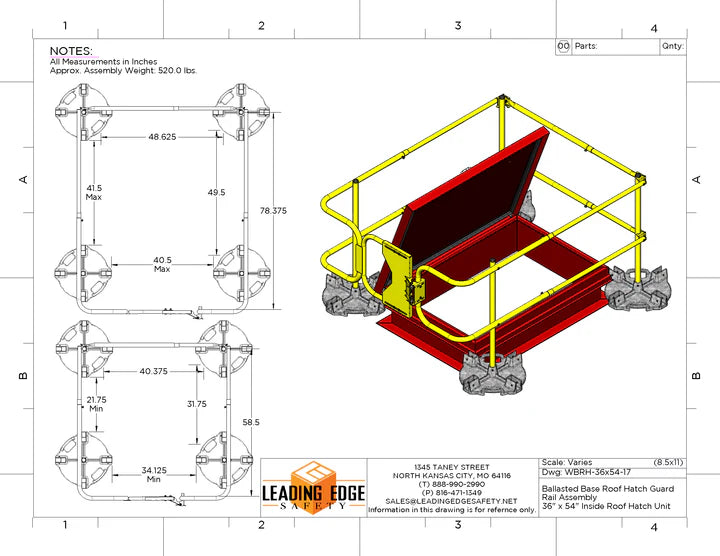

General Specifications:

• For Hatch Sizes: 36" X 54"
• Length: 73.56 in
• Width: 79.12 in
• Height: 41.5 in
• Weight: 530 lb
• Compliant With: OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, USACE EM 385-1-1 (21.E.01 a-c)
• Mounting Type: Ballasted (no roof penetration) or Direct to roof
• Drip Flange Length (Min/Max): 21.75 in - 41.5 in
• Drip Flange Width (Min/Max): 34.13 in - 40.5 in

Custom Solutions Available: If your roof hatch requires a non-standard size or a completely custom solution, our team of experienced professionals is ready to assist. Contact us with your specific requirements to receive tailored support.
