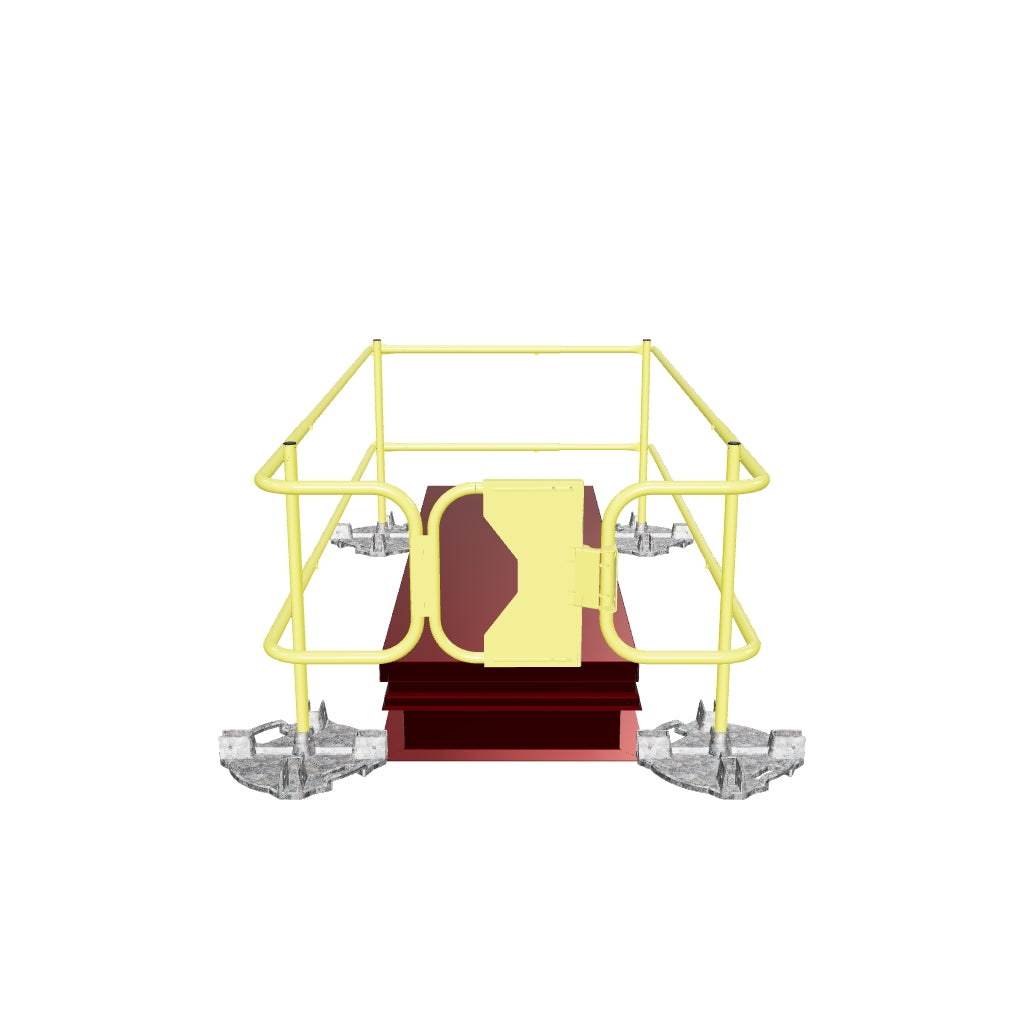

Secure Your Access with the WBRH-36X96-17-ASM Ballasted Roof Hatch Guardrail System

Ensure maximum safety and compliance with the WBRH-36X96-17-ASM, a robust guardrail system designed for 36" X 96" hatch openings. This system offers a reliable fall protection solution for roof access points, featuring a durable galvanized steel construction and a ballasted mounting option for easy installation without roof penetration.

• Includes:
• 4 - Galvanized Weighted Bases for stability
• 4 - Sturdy Weight Base Posts
• 4 - Adjustable Weighted Base Corners for flexible setup
• 2 - Medium Adjustable Rails (70" - 43")
• 1 - 93" Rear Side Adjustable Rail

Roof Hatch Walkout with Adjustable Rails (Box "B54"):
Includes 2 side rails and 4 adjustable rails (36"-54") for customizable protection.

Roof Hatch Gate (Box "C"):
Complete with 1 Gate Tube, 1 Gate Tube Mount, and 1 Hinge Mount for secure entry and exit.

General Specifications

• For Hatch Sizes: 36" X 96" Hatch
• Length: 124.56 in
• Width: 79.12 in
• Height: 41.5 in
• Weight: 530 lb
• Compliant With: OSHA CFR 1910.29, OSHA 29 CFR 1926.501, CAL-OSHA 3209, CAL-OSHA 3212, ANSI/ASSE A1264.1, ANSI/ASSE A14.3, USACE EM 385-1-1 (21.E.01 a-c)

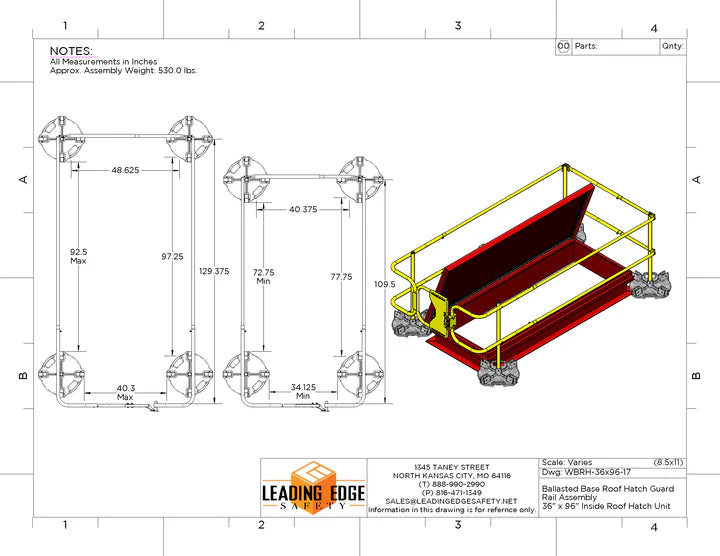

Mounting Specifications

• Mounting Type #1: Ballasted (No roof penetration required)
• Mounting Type #2: Direct to roof
• Drip Flange Length - Minimum: 72.75 in
• Drip Flange Length - Maximum: 92.5 in
• Drip Flange Width - Minimum: 34.13 in
• Drip Flange Width - Maximum: 40.5 in
