Ballasted Roof Hatch Guardrail System for 48" X 96" Hatches

Ensure workplace safety with this comprehensive Ballasted Roof Hatch Guardrail system, designed for standard 48" x 96" roof openings. This system provides a robust and reliable fall protection solution, compliant with major safety standards including OSHA, CAL-OSHA, and ANSI. It features a unique ballasted mounting system, eliminating the need for roof penetration and preserving the integrity of your roofing membrane. The adjustable rails and gate extension offer flexibility and ease of access, making it ideal for various roof maintenance and access applications.

Key Components:

• 4 - Galvanized Weighted Bases for stable, non-penetrating installation
• 4 - Heavy-duty Weight Base Posts
• 4 - Weighted Base Adjustable Corners for versatile configuration
• 2 - Large Adjustable Rails (120" - 70") for extensive coverage
• 1 - Gate Extension for secure and convenient access
• 93" Rear Side Adjustable Rail for complete perimeter protection

Roof Hatch Walkout Features (Box "B54"):

• 2 - Side Rails for the walkout area
• 4 - 36-54" Adjustable Rails to customize the walkout dimensions

Roof Hatch Gate Components (Box "C"):

• 1 - Gate Tube for the gate structure
• 1 - Gate Tube Mount for secure attachment
• 1 - Hinge Mount for smooth gate operation

General Specifications:

• Designed For Hatch Sizes: 48" X 96"
• Overall Length: 124.56 in
• Overall Width: 90.13 in
• Overall Height: 41.5 in
• Total Weight: 555 lb

Compliance Standards:

• OSHA CFR 1910.29
• OSHA 29 CFR 1926.501
• CAL-OSHA 3209
• CAL-OSHA 3212
• ANSI/ASSE A1264.1
• ANSI/ASSE A14.3
• USACE EM 385-1-1 (21.E.01 a-c)

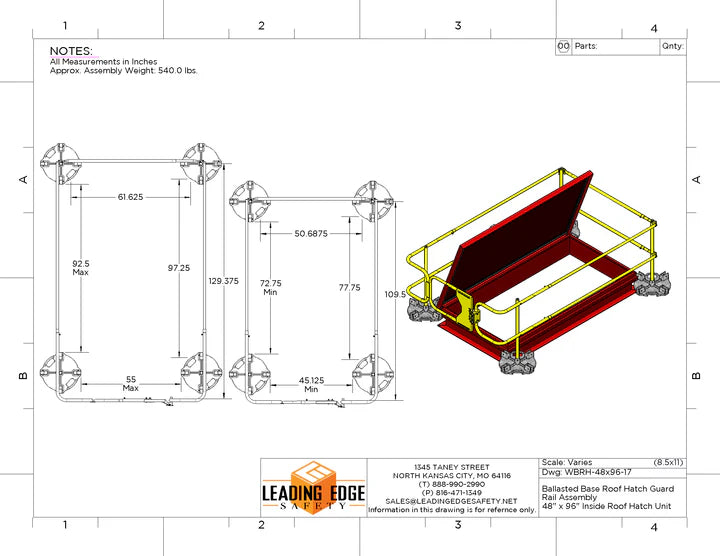

Mounting Specifications:

• Primary Mounting Type: Ballasted (non-penetrating)
• Secondary Mounting Type: Direct to roof (if required)
• Drip Flange Length - Minimum: 72.75 in
• Drip Flange Length - Maximum: 92.5 in
• Drip Flange Width - Minimum: 45.13 in
• Drip Flange Width - Maximum: 55 in

This guardrail system is an essential safety feature for any commercial or industrial building with rooftop access, providing a secure and compliant solution for fall prevention.
